Gripper with Vacuum Detection, Toothed Jaws GRP10/12F-12-SV (8.Y01287/8.Y01285)
These pneumatic grippers with toothed jaws stand out because the presence detection is ensured by a vacuum system! This completely eliminates the need for any electrical components.
| PN | Model | Dimension A | Gripping Force | Weight |
|---|---|---|---|---|
|
8.Y01287 |
GRP10F-12-SV |
⌀10 mm |
80 N |
55 g |
|
8.Y01285 |
GRP12F-12-SV |
⌀12 mm |
80 N |
57 g |
Basic Properties
- Piston bore ⌀12 mm

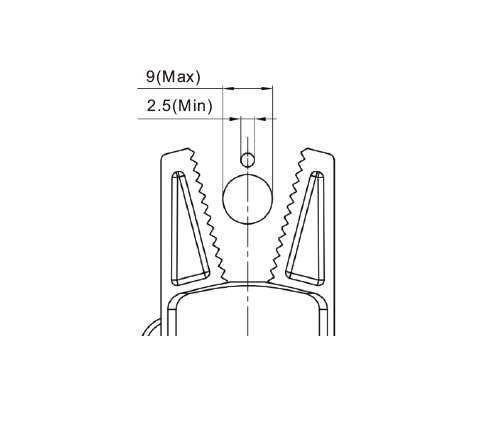

- Gripping range 2.5 – 9 mm
- Single-action opening with spring
- Toothed jaws
- Presence detection by vacuum
