Choose a variant
| Model | QC50 | QC90 | QC150 | QC160 | QC200 |
| Medium | Filtered compressed air | ||||
| Pressure range | 5~6 bar | ||||
| Temperature range | 5 ~ 60 °C | ||||
| Robot side quick changer

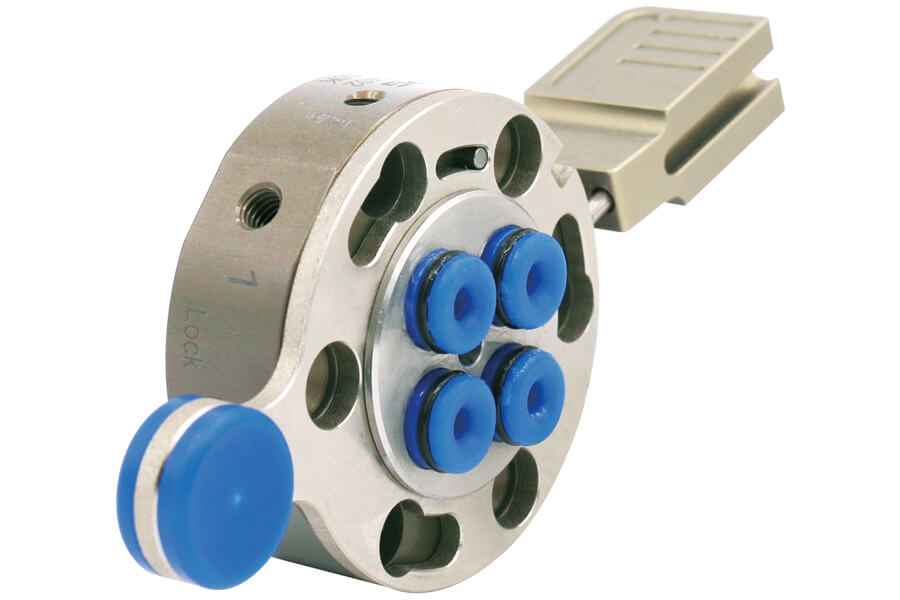

Robot side quick changer with safety lock (K) |

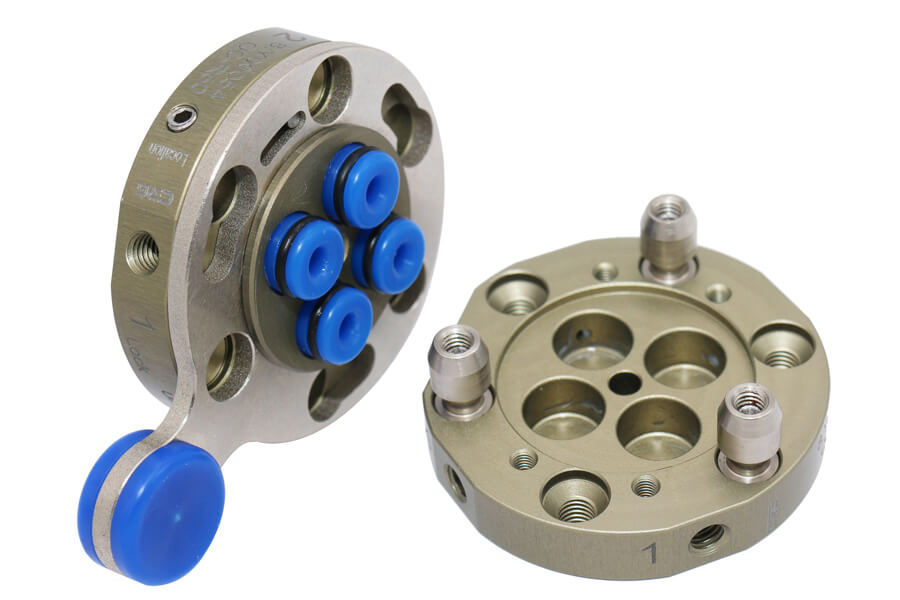

QC-R50

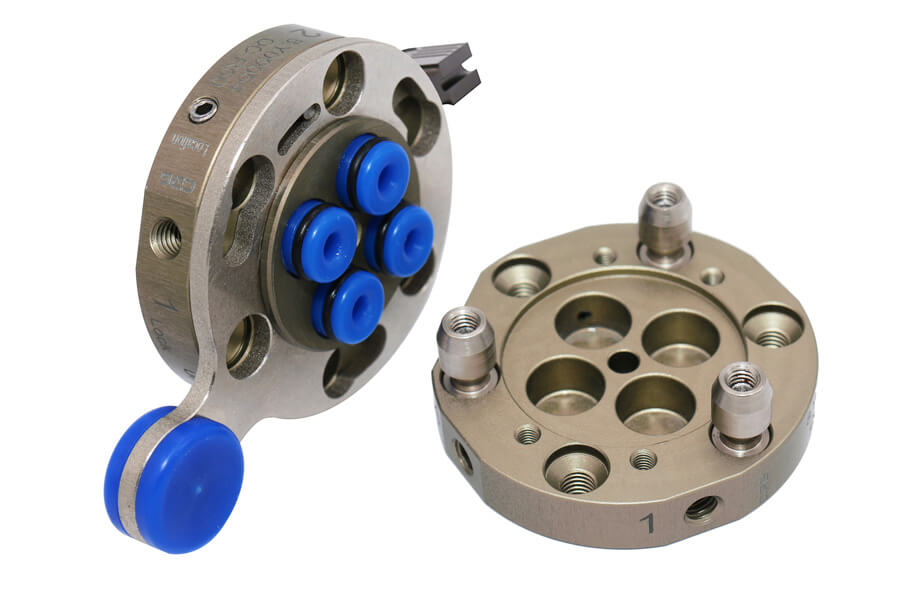

QC-R50K |

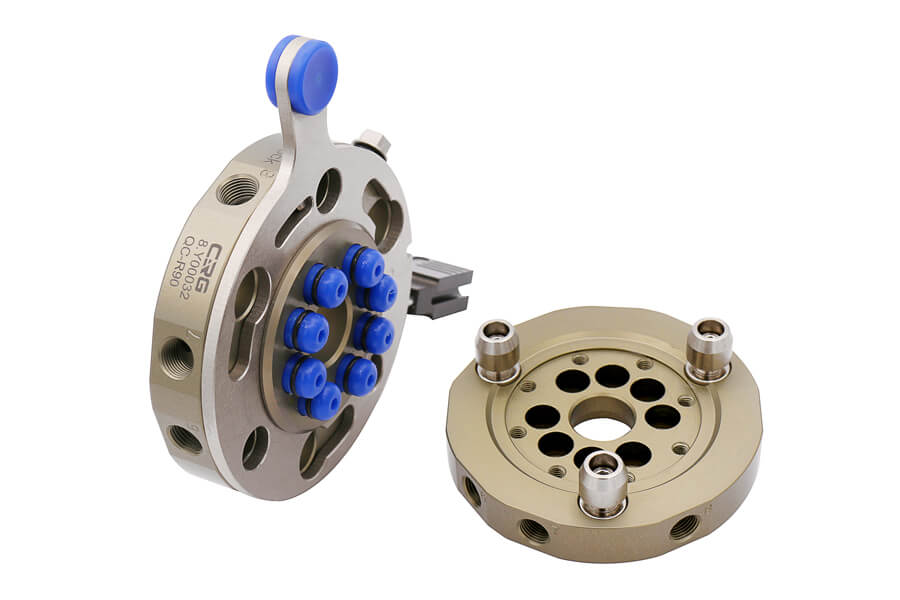

QC-R90
QC-R90K |

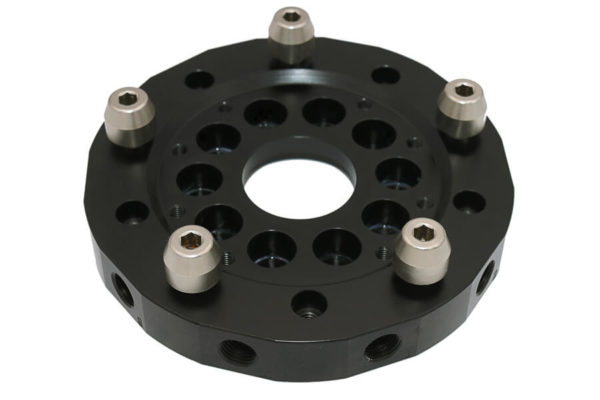

QC-R150
QC-R150K |
QC-R160K | QC-R200K |
| Robot side quick changer weight | 103 g | 318 g | 1159 g | 1200 g | 2640 g |

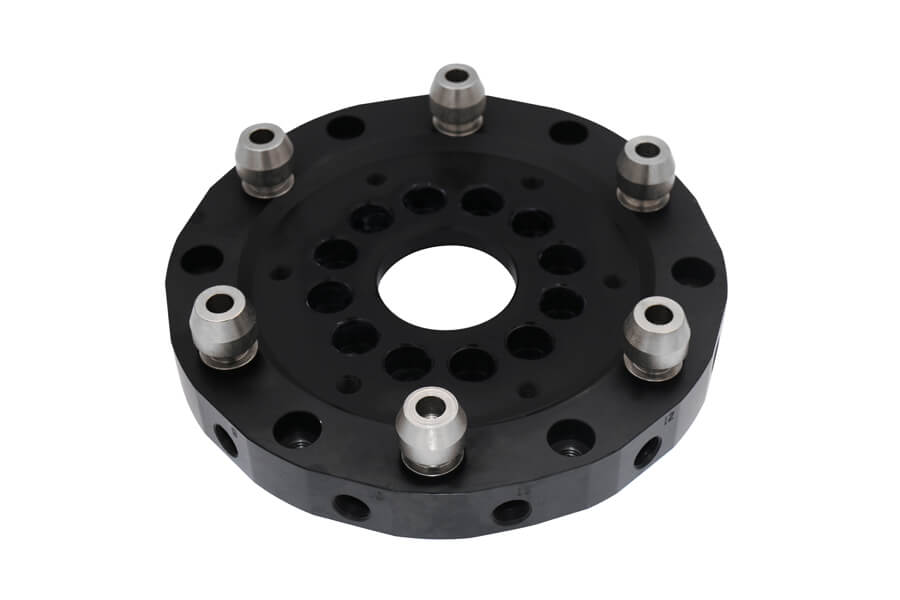

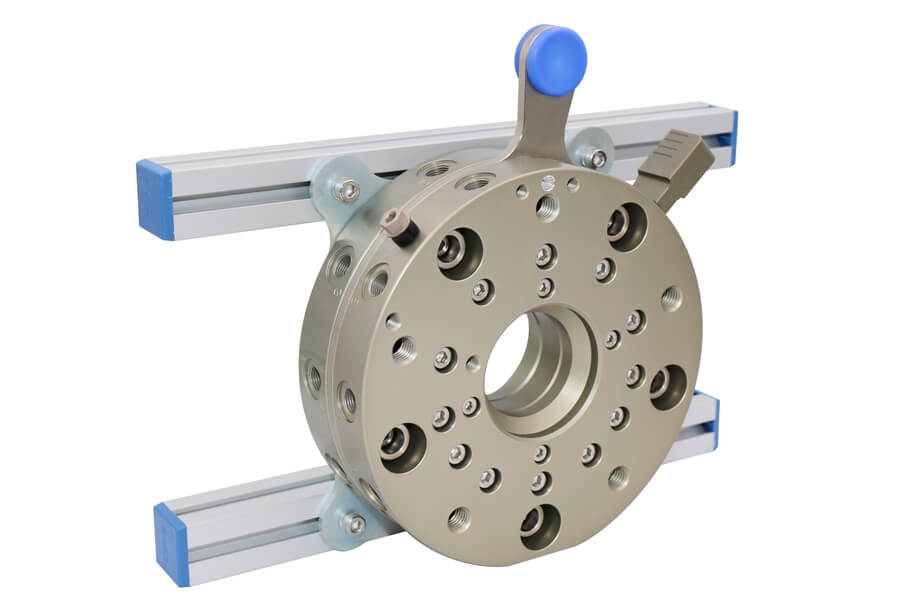

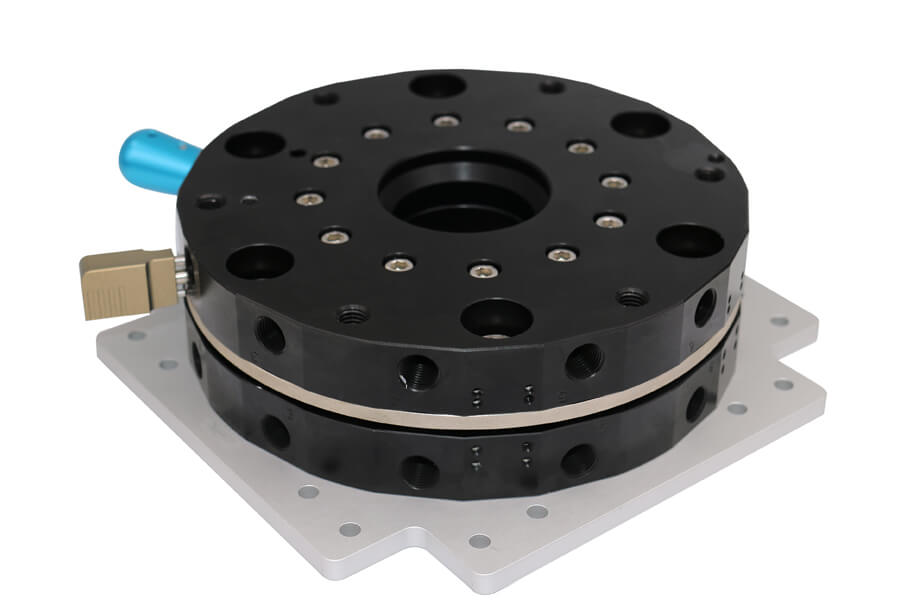

| Gripper side quick changer | QC-G50 | QC-G90 | QC-G150 | QC-G160 | QC-G200 |
| Gripper side quick changer weight | 65 g | 227 g | 837g | 900 g | 1890 g |
| F | 150N | 400N | 1000N | 1000N | 2000N |
| Mt | 20Nm | 100Nm | 250Nm | 250Nm | 600Nm |
| Mb | 10Nm | 60Nm | 150Nm | 150Nm | 300Nm |
| Recomended payload | 5kg | 15kg | 35kg | 35kg | 75kg |
| Colour | Brass | Brass | Black | Brass | Black |
