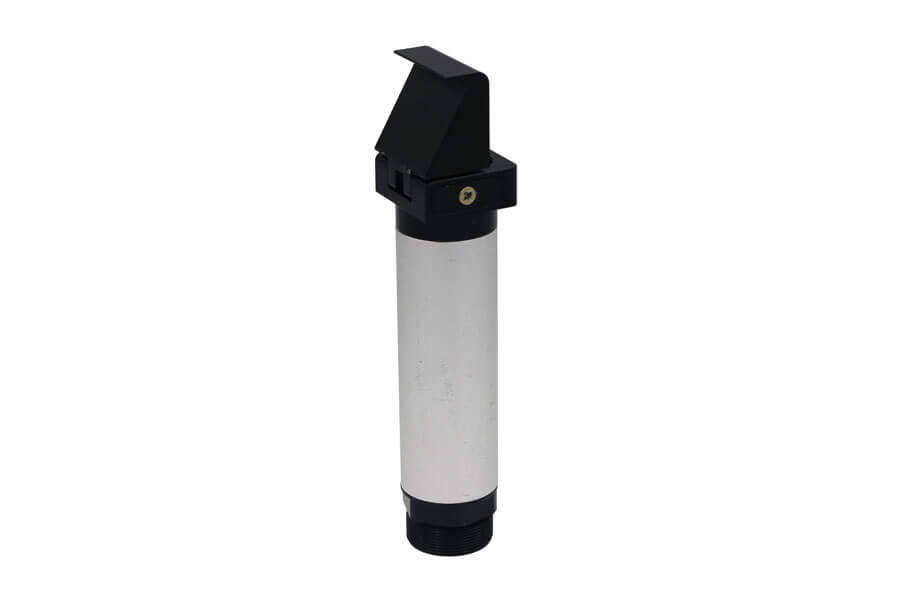

Choose a variant
| PN | 8.Y00117 | 8.Y00118 | 8.Y00119 |
| Model | GFA14-35-C | GFA20-35-C | GFA30-35-C |
| Medium | Filtered, lubricated / non-lubricated compressed air | ||
| Gripper body | Aluminium | Aluminium | Aluminium |
| Pressure range | 2.5 — 8 bar | 2.5 — 8 bar | 2.5 — 8 bar |
| Temperature range | -10 — 70 °C | -10 — 70 °C | -10 — 70 °C |
| Stroke | 35° | 35° | 35° |
| Piston bore | Ø10 mm | Ø16 mm | Ø25 mm |
| Closing torque at 6 bar | 26 N.cm | 100 N.cm | 430 N.cm |
| Cycle air consumption | 0.4 cm3 | 1.24 cm3 | 4.56 cm3 |
| Weight | 25 g | 65 g | 206 g |
| Dimensions [mm] | |||
| A | 14 | 20 | 30 |
| B | 14 | 20.5 | 30 |
| C | 10.5 | 9 | 12 |
| D | 49.5 | 76.5 | 111 |
| E | 5.5 | 8 | 11 |
| F | 13.5 | 20.2 | 30.5 |
| G | 4.5 | 6 | 8 |
| H | 74 | 106 | 153 |
| I | Ø14 | Ø20 | Ø30 |
| J | 12 | 17 | 27 |
| K | M5 | M5 | M5 |
| M | M12×1 | M17×1 | M27×1 |
