Choose a variant
| PN | 8.Y00310 |

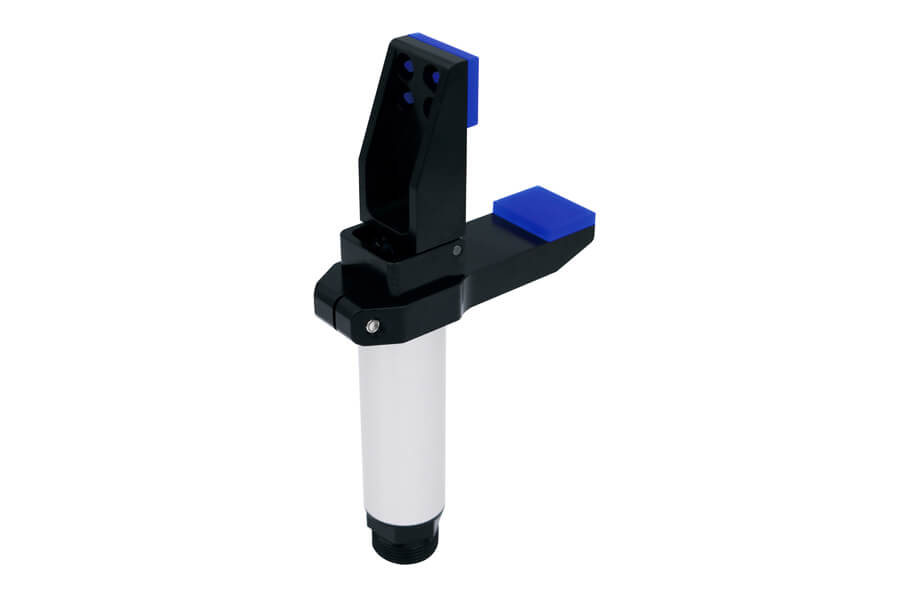

| Model | GFR20-95GL |
| Medium | Filtered, lubricated / non-lubricated compressed air |
| Gripper body | Aluminium |
| Pressure range | 2.5 — 8 bar |
| Temperature range | -10 — 70 °C. |
| Stroke | 95° |
| Piston bore | Ø16 mm |
| Closing torque at 6 bar | 70 N.cm |
| Cycle air consumption | 3.52 cm3 |
| Weight | 104.8 g |

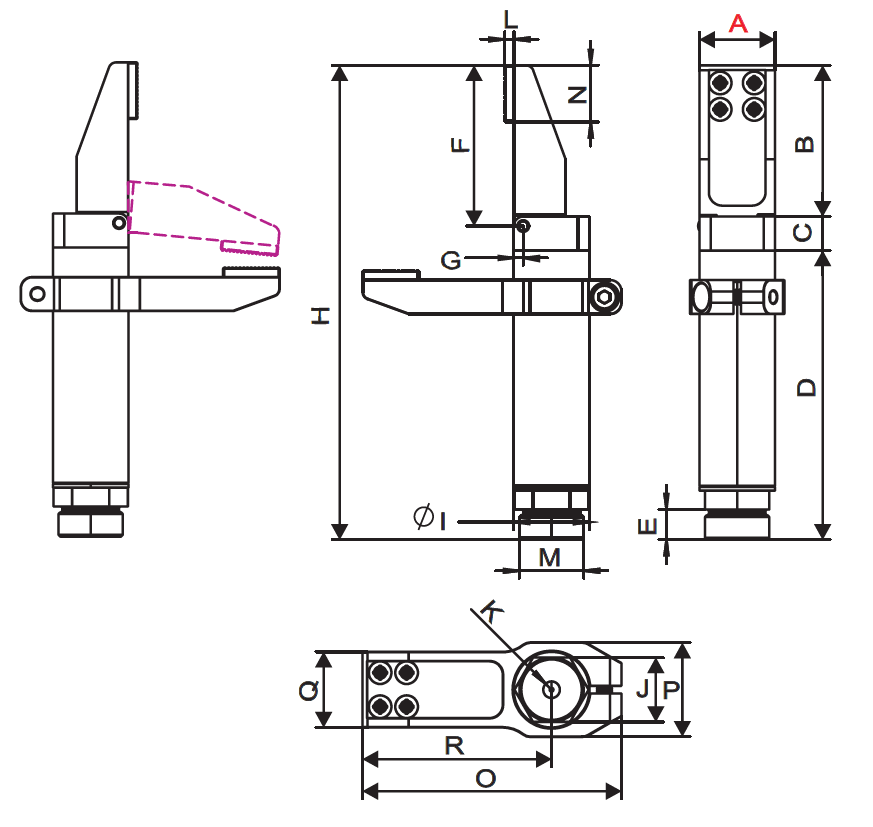

| Dimensions [mm] | |
| A | 20 |
| B | 40 |
| C | 9 |
| D | 76.5 |
| E | 8 |
| F | 42.5 |
| G | 2.5 |
| H | 125.5 |
| I | Ø20 |
| J | 17 |
| K | M5 |
| L | 2.5 |
| M | M17x1 |
| N | 15 |
| O | 68.5 |
| P | 25 |
| Q | 20 |
| R | 50 |
| PN | 4.Y00485 |
| Model | SIL-20G |
| Applicable Products | GFR20-95G |
