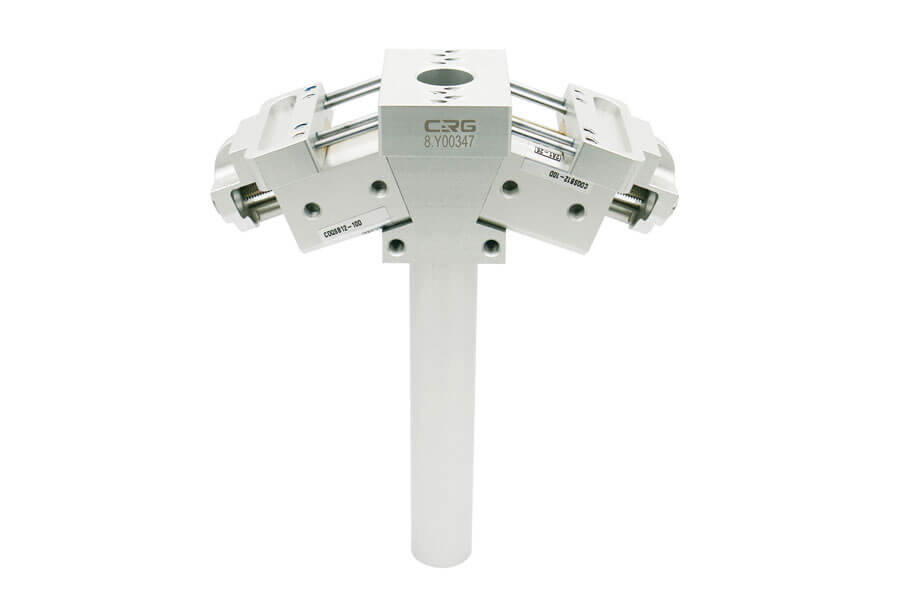

GN Pneumatic Needle Gripper (Series GN)

Being used for embedding and taking out nonwoven fabric, net cloth and sponge.The length of the steel
needle can be not only adjustable,but also customized according to the requirements of the customer.

Choose a variant

PN 8.Y00025 8.Y00347
Model GN2010 GN2010-8
Medium Filtered, lubricated / non lubricated compressed air
Pressure range 3 ~ 8 bar
Temperature range -10° ~ 70 °C.
Opening total gripping force at 6 bar 90 N
Needle stroke s 0 ~ 10 mm
Cycle air consumption 3.5 cm3
Weight 274 g 317 g
