Choose a variant

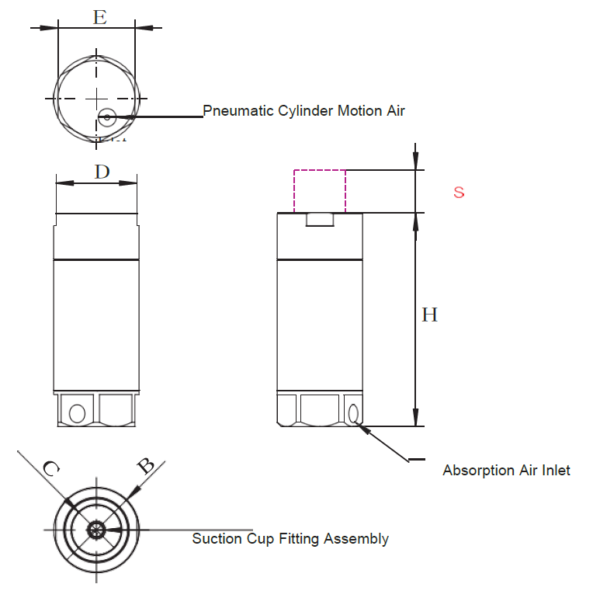

PN | Model | A | B [mm] | C [mm] | D [mm] | E [mm] | F | H [mm] | I | S [mm] | Weight |
8.Y00207 | VF G20-10 | M5 | Ø20 | Ø12 | 19 | 18 | M5 | 50 | M5 | 10 | 35 g |
8.Y00337 | VF G20-20 | M5 | Ø20 | Ø12 | 19 | 18 | M5 | 65 | M5 | 20 | 45 g |
8.Y00338 | VF G20-50 | G1/8 | Ø50 | Ø20 | 27 | 27 | G1/8 | 72 | G1/8 | 20 | 70 g |
