VESSEL has achieved smooth, continuous slide movement even for large diameter gate cuts, which produce a large shock at each cut.

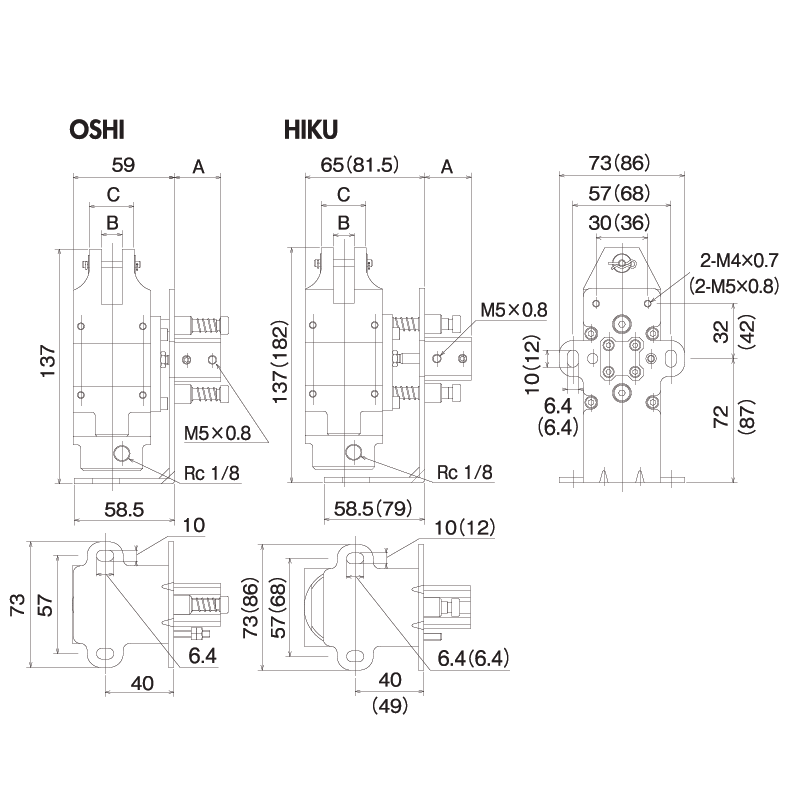

| Model No. | Size (mm) | Slide Direction / Distance (mm) | Weight
(g) |
||
| A | B | C | |||

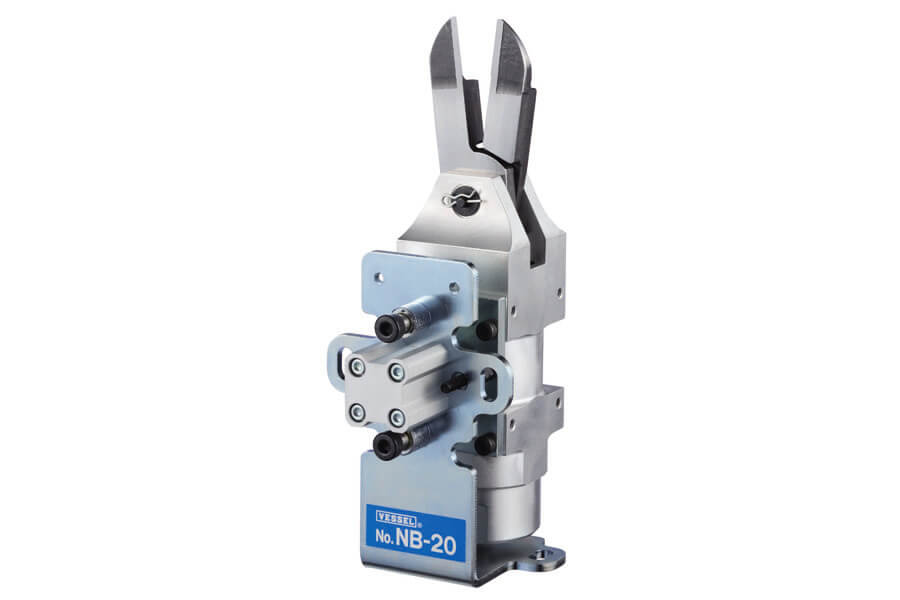

| GT-NB20 (5-OSHI) | 22 | 12 | 26 | Push 0— 5 | 755 |
| GT-NB20 (5-HIKU) | 22 | 12 | 26 | Pull 0— 5 | 755 |
| GT-NB20 (10-OSHI) | 27 | 12 | 26 | Push 0—10 | 755 |
| GT-NB20 (10-HIKU) | 27 | 12 | 26 | Pull 0—10 | 755 |
| GT-NB30O 0-HIKU) | 28.5 | 17 | 36 | Pull 0—10 | 1420 |

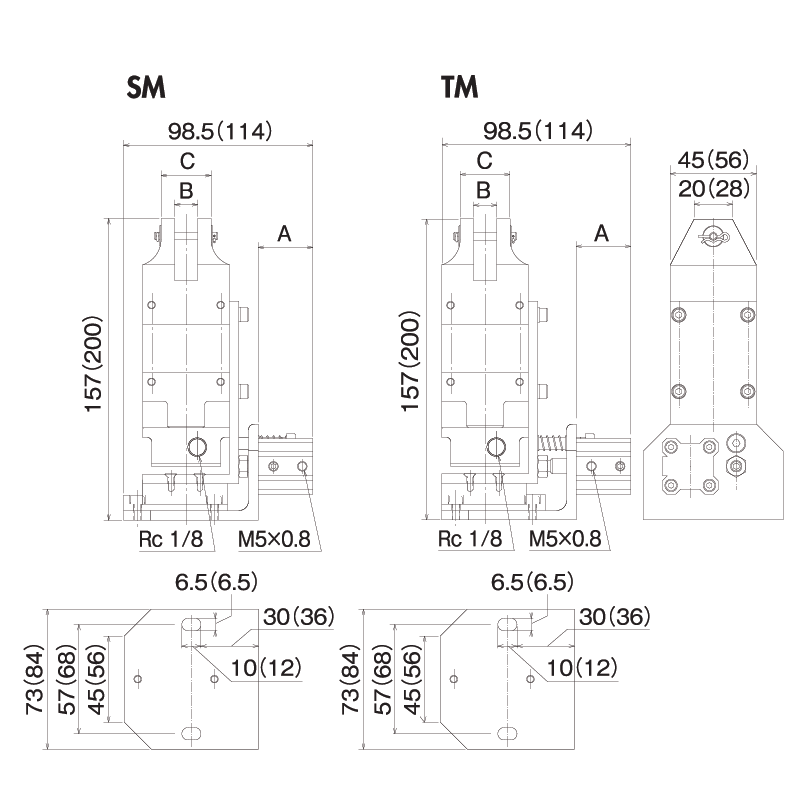

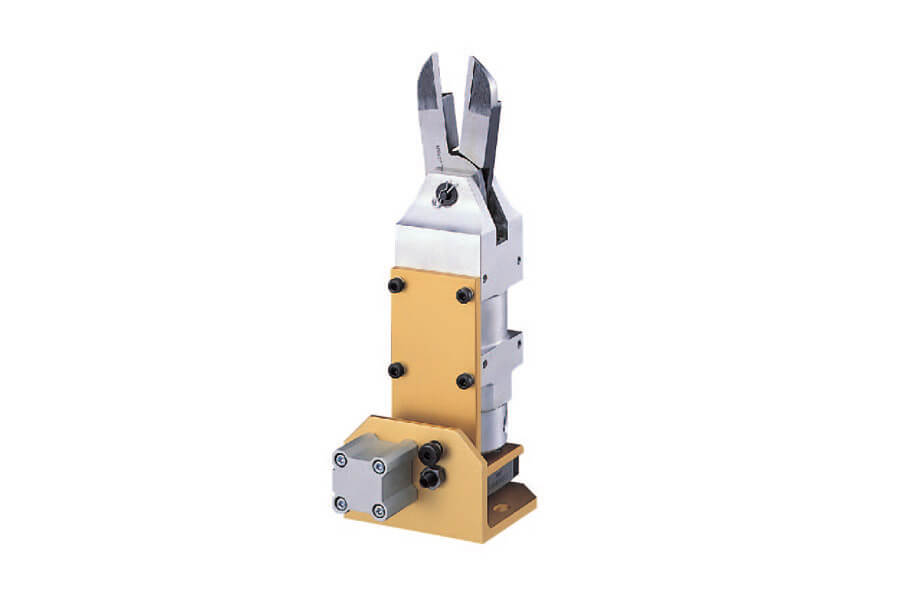

| GT-NB20LW-10TM | 28.5 | 12 | 26 | Pull 0—10 | 795 |
| GT-NB30LW-10TM | 29.5 | 17 | 36 | Pull 0—10 | 1315 |
| GT-NB20LW-10SM | 28.5 | 12 | 26 | Push 0—10 | 795 |
| GT-NB30LW-10SM | 29.5 | 17 | 36 | Push 0—10 | 1325 |
