Choose a variant
Speed control of cut speed and heater temperature allows for variable cutting surface solutions for extremely high precision cutting demands.
| Model No. | Cutting Capacity
Ø (mm) Acril |
Blade Edge Temp.
(MAX °C) |
Cutting
Cycle (sec/cut) |
Air
Consumption (cm3/str.) |
Piston Stroke (mm) | Weight
(g) |

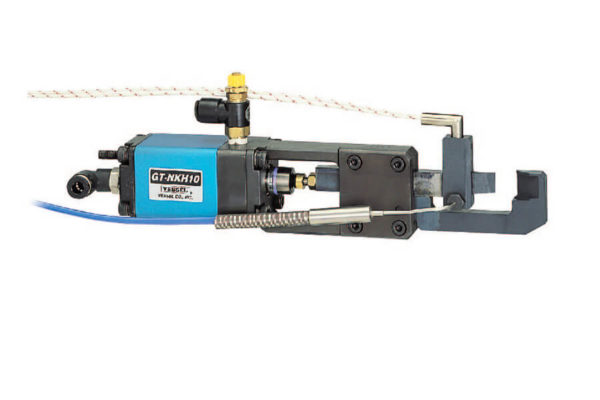

| GT-NKH10 | 7x1.5 | 200 | 4~5 | 73 | 12 | 715 |
- Included heater: 80W/120V Cord length: 300mm
- Included temperature sensor: Thermal couple type K (Nickel-Chromium/Nickel-Aluminum)
Cord length: 1000mm
- Air pressure0.5~0.6MPa
Option Parts
- Temperature controller (DTC-001)
