The Nr20 body contains the installation scale of two sides.
- The main body end is 180° rotatable.
- Two suction (intake) ports are provided, the suction position can be optionally changed depending on the mounting plate.
| Capacity Ø (mm) | Model No. | Size (mm) | Air Consumption (cm3/str.) | Air Pressure (MPa) | Weight
(g) |
oHose coupling | |||||||||

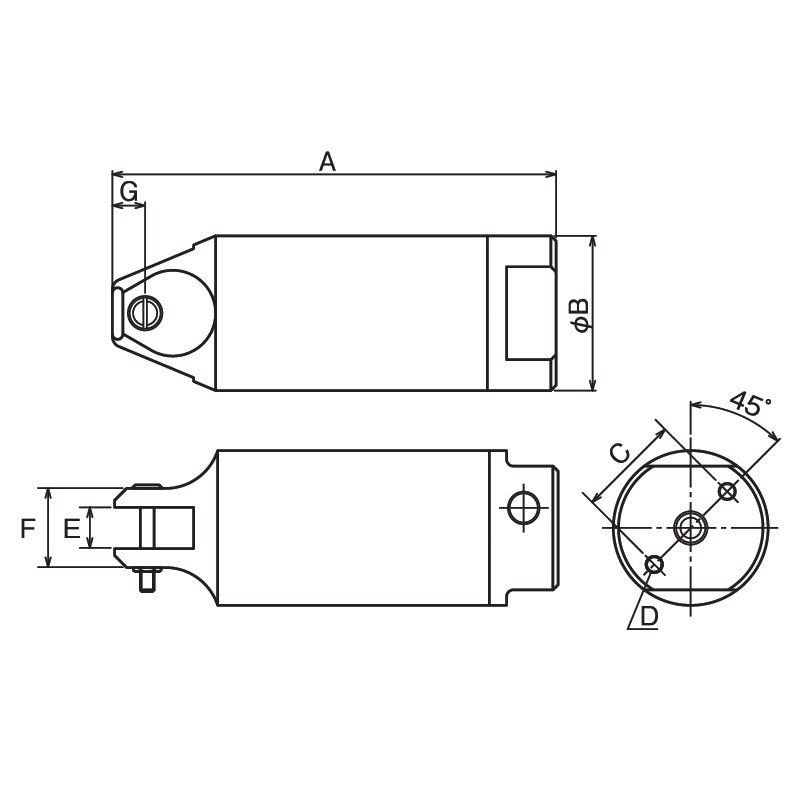

| Soft Plastic | Hard Plastic | Copper | Steel | A | B | C | D | E | F | G | |||||
| 2.0 | 1.0 | 0.5 | GT-NR3 | 110 | 23 | 17 | M3 Depth8 | 7 | 14 | 7 | 45 | 0.4-0.5 | 70 | ||
| 2.0 | 1.0 | 0.5 | GT-NR5 | 94 | 30 | 20 | M4 Depth 10 | 7 | 17 | 7 | 64 | 0.4-0.5 | no | ||
| 3.0 | 2.0 | 1.6 | 1.0 | GT-NR7 | 113 | 34 | 22 | M4 Depth 10 | 9 | 17 | 7 | 116 | 0.4-0.5 | 150 | |
| 4.0 | 2.6 | 1.8 | 1.2 | GT-NR10L | 113 | 36 | 24 | M4 Depth 10 | 12 | 20 | 7 | 116 | 0.4-0.6 | 215 | Rc1/8 |

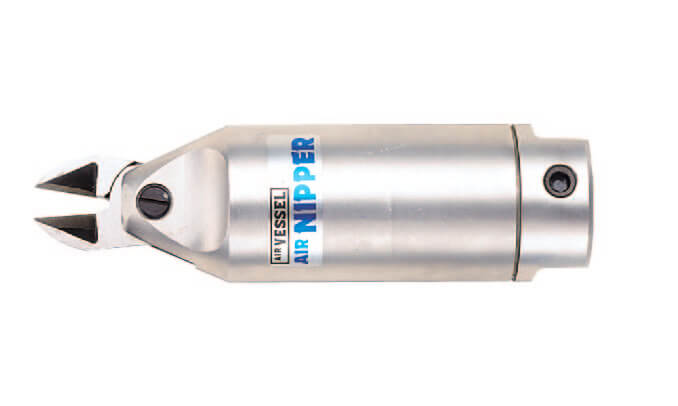

| 7.0 | 5.0 | 2.6 | 2.0 | GT-NR20 | 129 | 45 | 30 | M5 Depth 12 | 12 | 23 | 9.5 | 230 | 0.5-0.6 | 280 | |

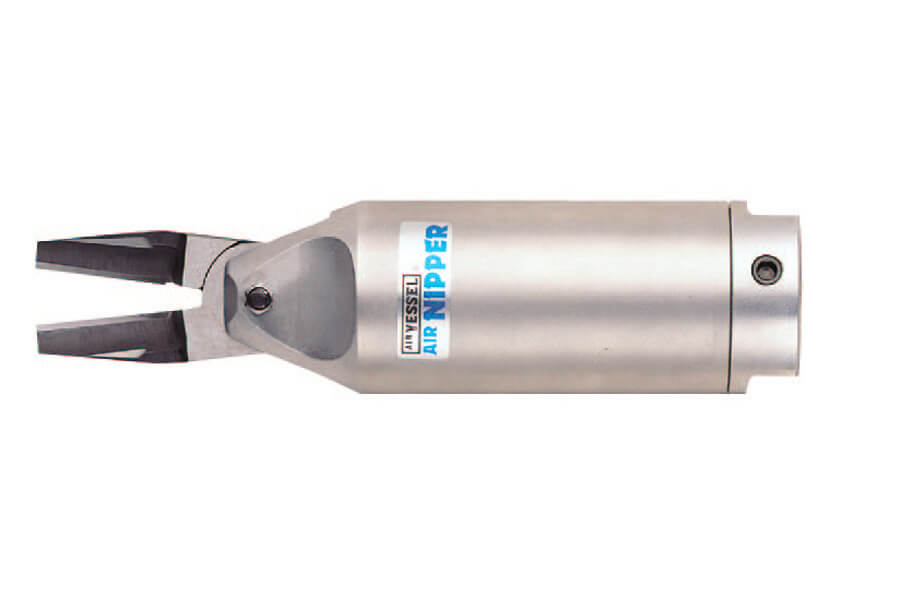

| 10.0 | 6.5 | 3.3 | 2.8 | GT-NR30 | 165 | 56 | 40 | M6 Deothl2 | 17 | 30 | 10.5 | 584 | 0.5-0.6 | 505 | |
| 12.0 | 6.5 | 5.5 | 4.5 | GT-NR50 | 222 | 75 | 50 | M8 Death 12 | 25.2 | 43 | 15 | 1170 | 0.5-0.6 | 1190 | |
- Air hose inner dia. : 5mm
- Overall length/Weight: Accessories not included.
- Before mounting of exclusive/automatic machines, check the following product dimensions.(Frame O.D., screw dia. (screw to screw) dimensions, etc.
