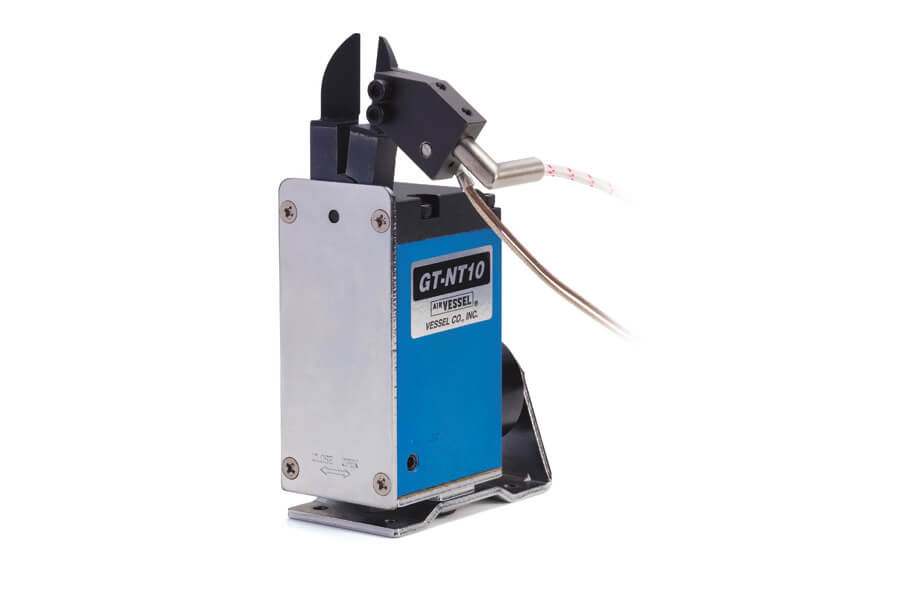

Vertical sliding type
Choose a variant
One blade is fixed in position, facilitating easy gate alignment.
In addition, a slide function presses the product into position.
| Model No. | Cutting Capacity
Ø (mm) Acril |
Blade Edge Temp.
(MAX °C) |
Cutting
Cycle (sec/cut) |
Air
Consumption (cm3/str.) |
Slide
Distance (mm) |
Weight
(g) |

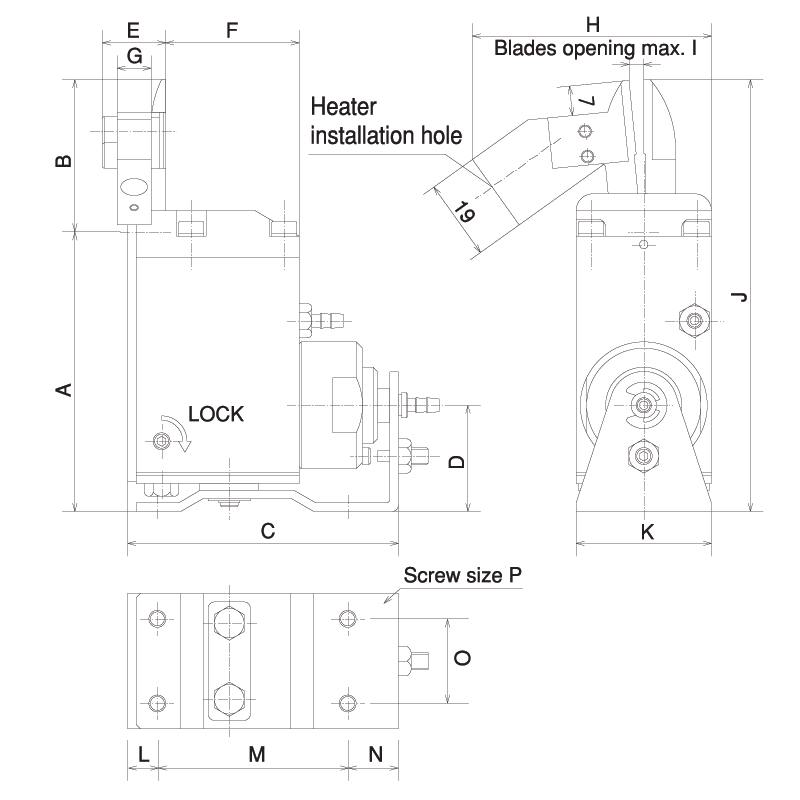

Dimensions (mm) | |||||||||||||||
| A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | |||||||
| GT-NTH05 | 2.5 | 200 | 4~5 | 47 | 0~3 | 325 | 66.1 | 36 | 64 | 25.1 | 15 | 31.5 | 8 | 56.5 | 3.5 | 102.1 | 32 | 7 | 45 | 12 | 20 | M4 |
| GT-NTH10 | 3.5 | 200 | 4~5 | 82 | 0~3 | 515 | 83 | 47 | 73 | 29 | 16.2 | 37.5 | 8 | 63 | 4.5 | 130 | 38 | 8 | 53 | 12 | 24 | M4 |
- Included heater: 80W/120V Cord length: 300mm
- Included temperature sensor: Thermal couple type K (Nickel-Chromium/Nickel-Aluminum)
Cord length: 1000mm
- Air Pressure: 0.4~0.5MPa
Blades Specifications
| Model No. | Material | a
(mm) |
b
(mm) |
c
(mm) |
d
(mm) |
e
(mm) |
| NTH05AJ | Special Alloy Steel | 36 | 7 | 3.5 | 15 | 3.5 |
| NTH10AJ | Special Alloy Steel | 47 | 9 | 4.7 | 17 | 4.5 |
| Model No. | L
(mm) |
Weight
(g) |
Cutting Capacity Ø(mm)
Acril |
Setting temp.
(MAX °C) |
Application model |
| NTH05AJ | 72 | 40 | 2.5 | 200 | GT-NT05(-4)/GT-NT05R(-4) |
| NTH10AJ | 94 | 88 | 3.5 | 300 | GT-NT10(-6)/GT-NT10R(-6) |
HTH type blade weight does not include heater and sensor
Option Parts
- Temperature controller (DTC-001)
