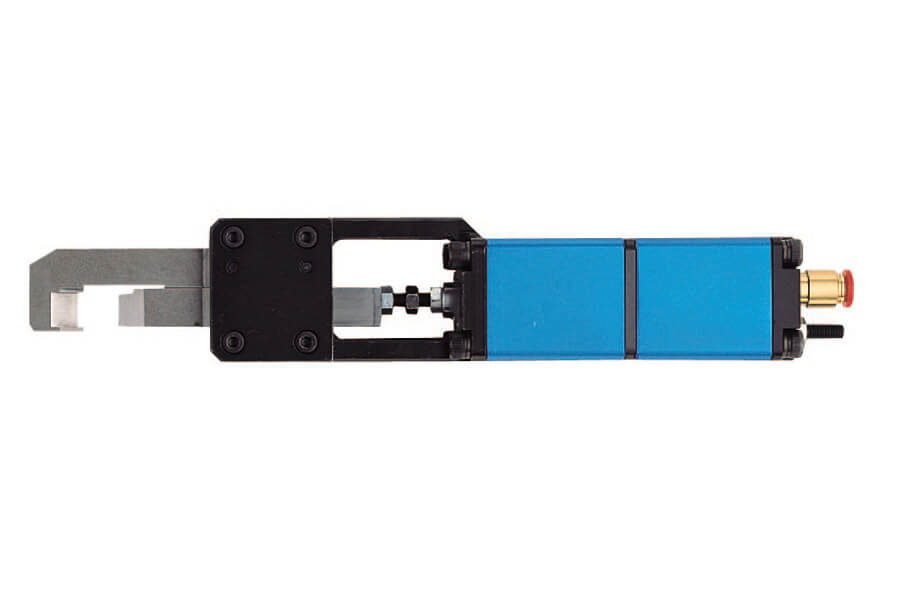

NK Thrust-Cut Air Nipper
Choose a variant
These nippers are equipped with a foot switch and are linked to high precision drivers, enabling the cutting of film-shaped gates from the thin end, preventing wrinkles around the cut.
|Capacity Ø (mm)
|Model No.||Air Consumption (cm3/str.)||Air Pressure (MPa)||Weight
|Applied Pressure (N)||Spec. & Size of the Hose Port|
|5||GT-NK10||110||0.4-0.5||800||735||Hose I.D. Ø2.5XO.D. Ø4mm|
|•Hose Coupling: I.D. Ø4 X O.D. Ø6 mm •Piston stroke-…Max. 12 mm|
