Choose a variant
Blade opening and closing is air piston driven. Having no spring mechanism in the main unit facilitates maintenance operations.
| Capacity Ø (mm) | Air Consumption (cm3/str.) | Applied Pressure
(N) |
Air pressure
(MPa) |
Size (mm) | Weight
(g) |
|||||
| Model No. | Copper | Steel | ABS Plastic | A | B | |||||

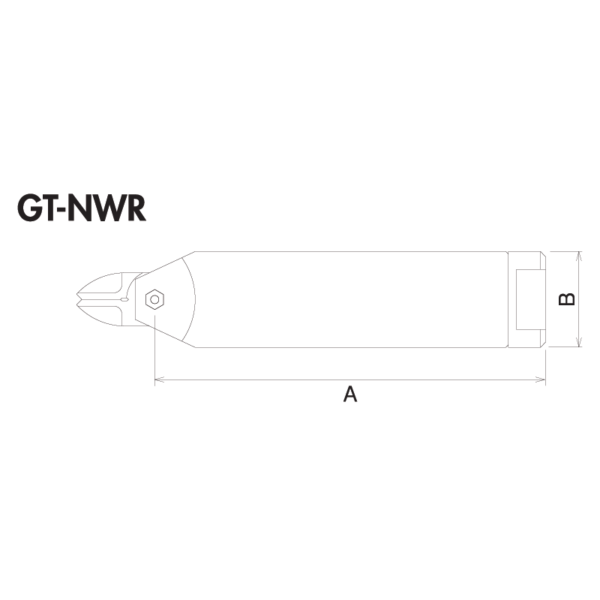

| Double Action Air Scissors (Round Type without Lever) | ||||||||||
| GT-NWR10 | 1.8 | 1.2 | 4.0 | 116 | 588 | 0.4 - 0.5 | 146 | Ø36 | 280 | |

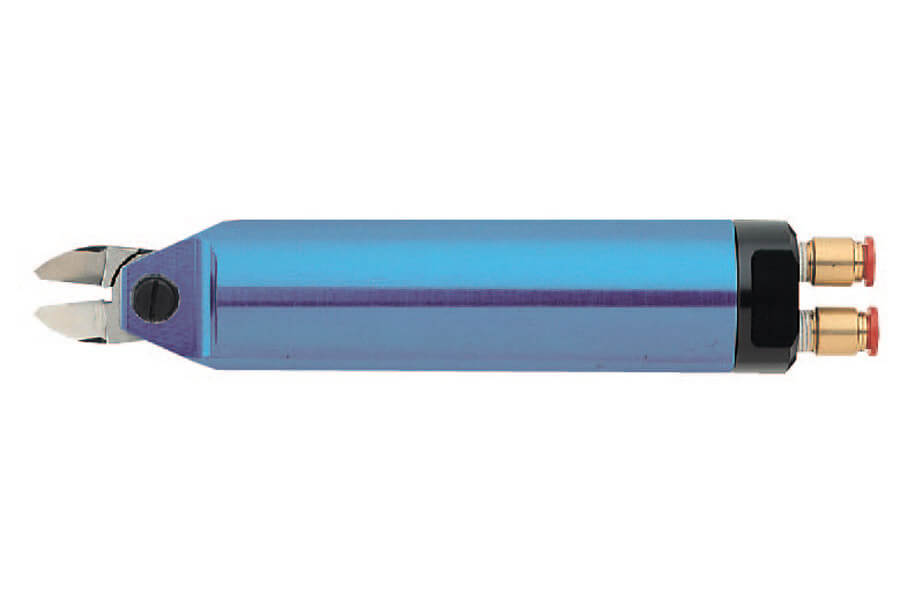

| GT-NWR20 | 2.6 | 2.0 | 6.5 | 230 | 1372 | 0.5 - 0.6 | 165 | Ø45 | 523 | |
| GT-NWR30 | 3.3 | 2.8 | 9.5 | 584 | 2744 | 0.5 - 0.6 | 230.5 | Ø56 | 980 | |

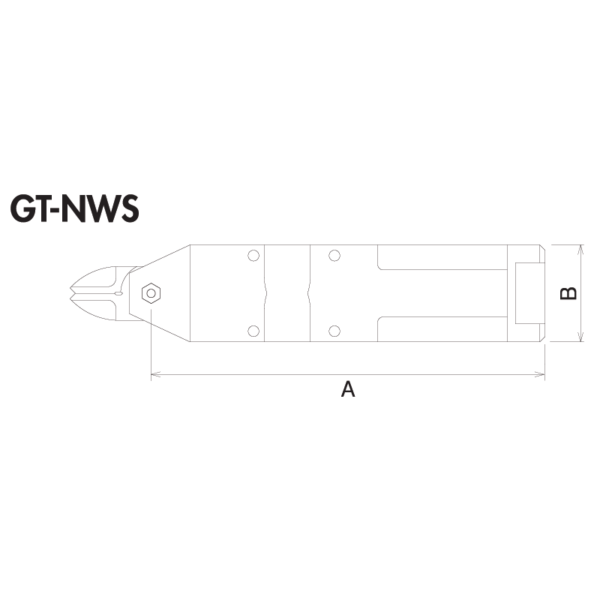

| Double Action Air Scissors (Square Type) | ||||||||||
| GT-NWS1 | 1.0 | 0.5 | 2.0 | 45 | 294 | 0.4 - 0.5 | 95 | 23x20 | 116 | |
| GT-NWS10 | 1.8 | 1.2 | 4.0 | 116 | 588 | 0.4 - 0.5 | 146 | 36x36 | 356 | |

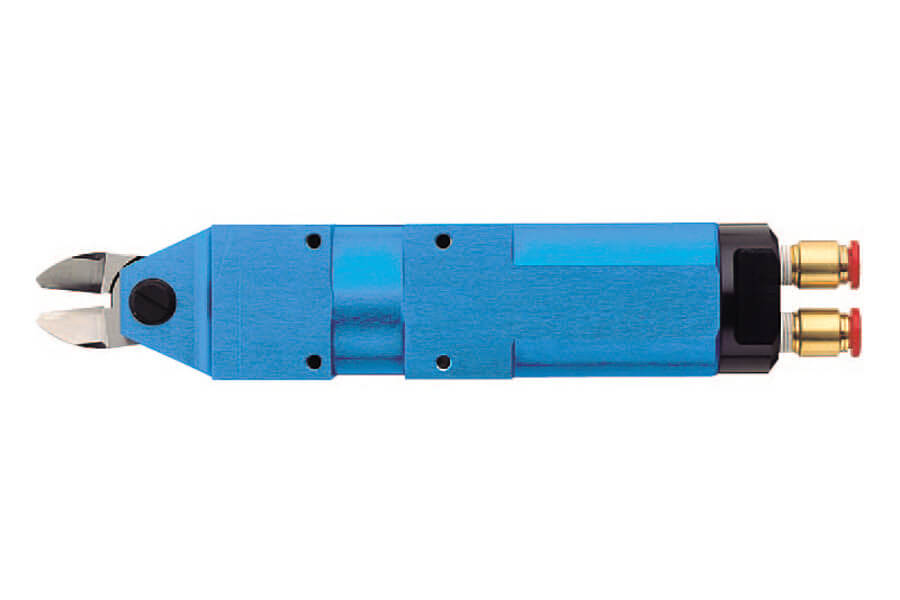

| GT-NWS20 | 2.6 | 2.0 | 6.5 | 230 | 1372 | 0.5 - 0.6 | 165 | 45x45 | 610 | |
| GT-NWS30 | 3.3 | 2.8 | 9.5 | 584 | 2744 | 0.5 - 0.6 | 230.5 | 56x56 | 1115 | |
