N20AH152_2

N20AH152_dim

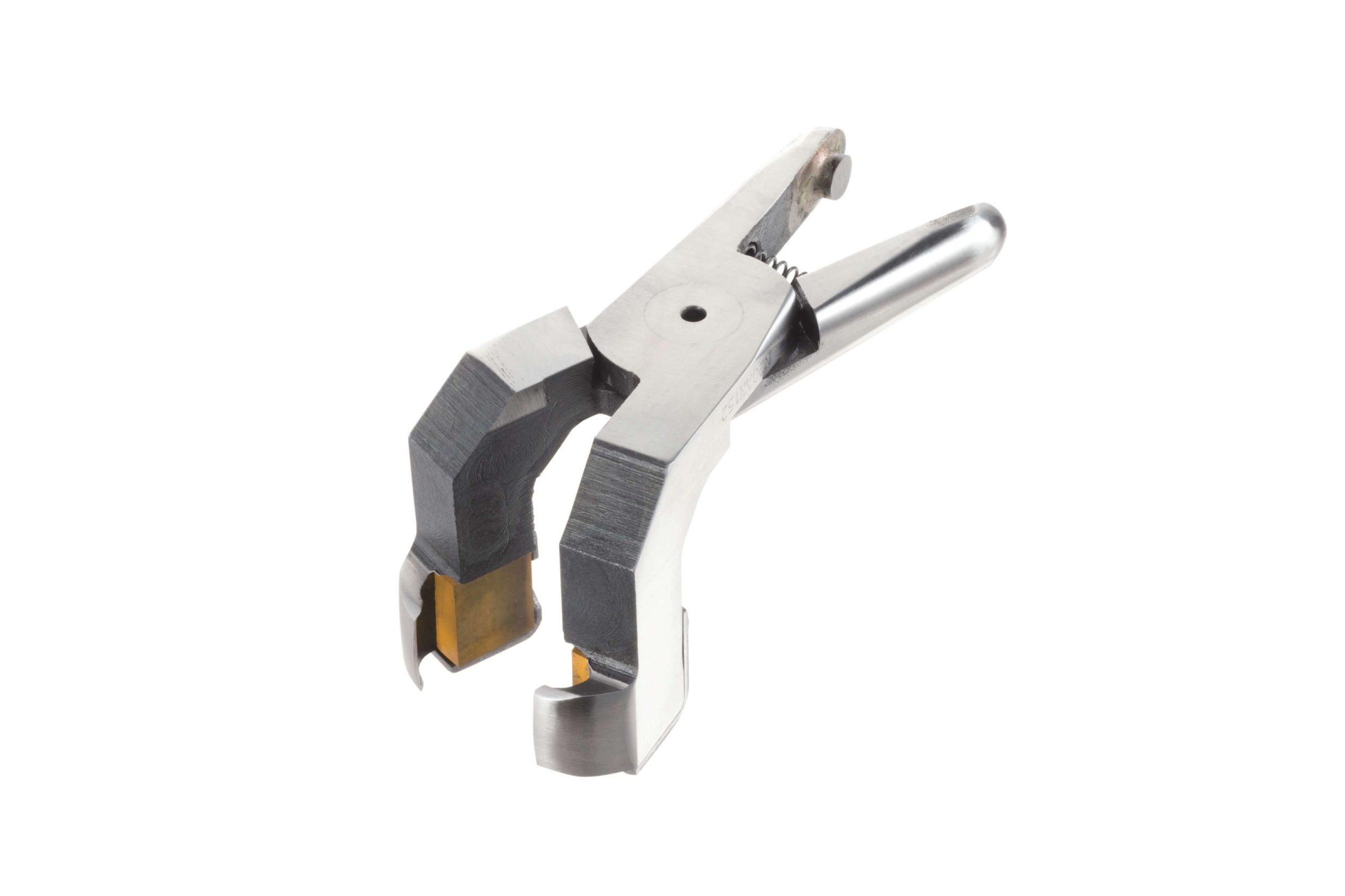

Air Nipper Quasi-Standard Blades For Plastic

Comes with sprue chuck function

Login to see the attachments

Choose a variant

Mainly in gate processing for direct gates, the sprue is caught with urethane rubber. A large R is provided in the cross section for gate processing where the cut end must not be left.

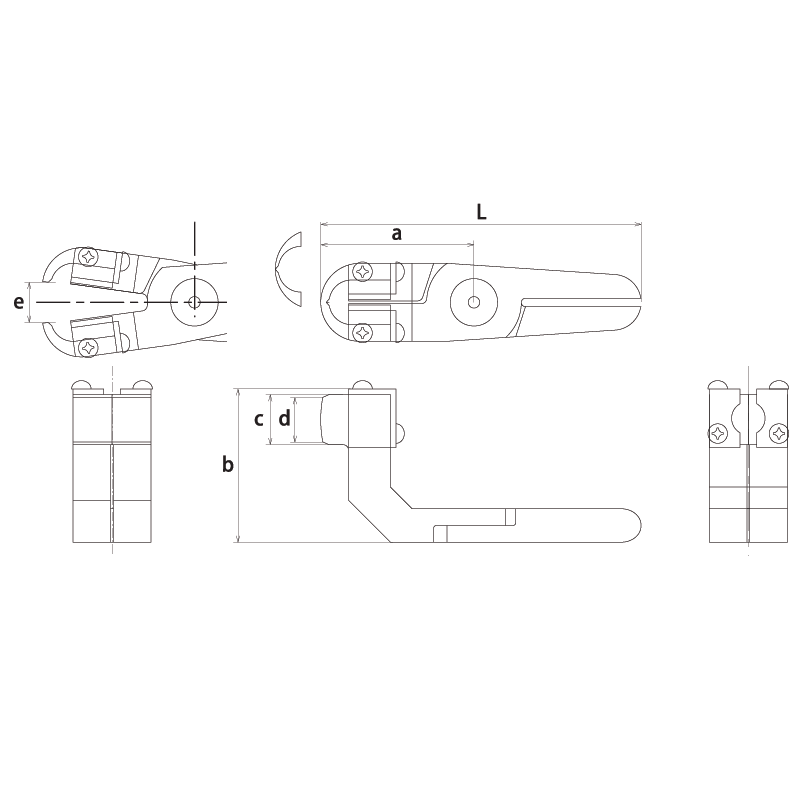

Model No.

Size (mm)

Weight

(g)

Material

Application model

a

b

c

d

e

L

N20AH152

55

53

18

16

15

115

330

Special alloy steel

GT-N20 / NS20 / NR20
