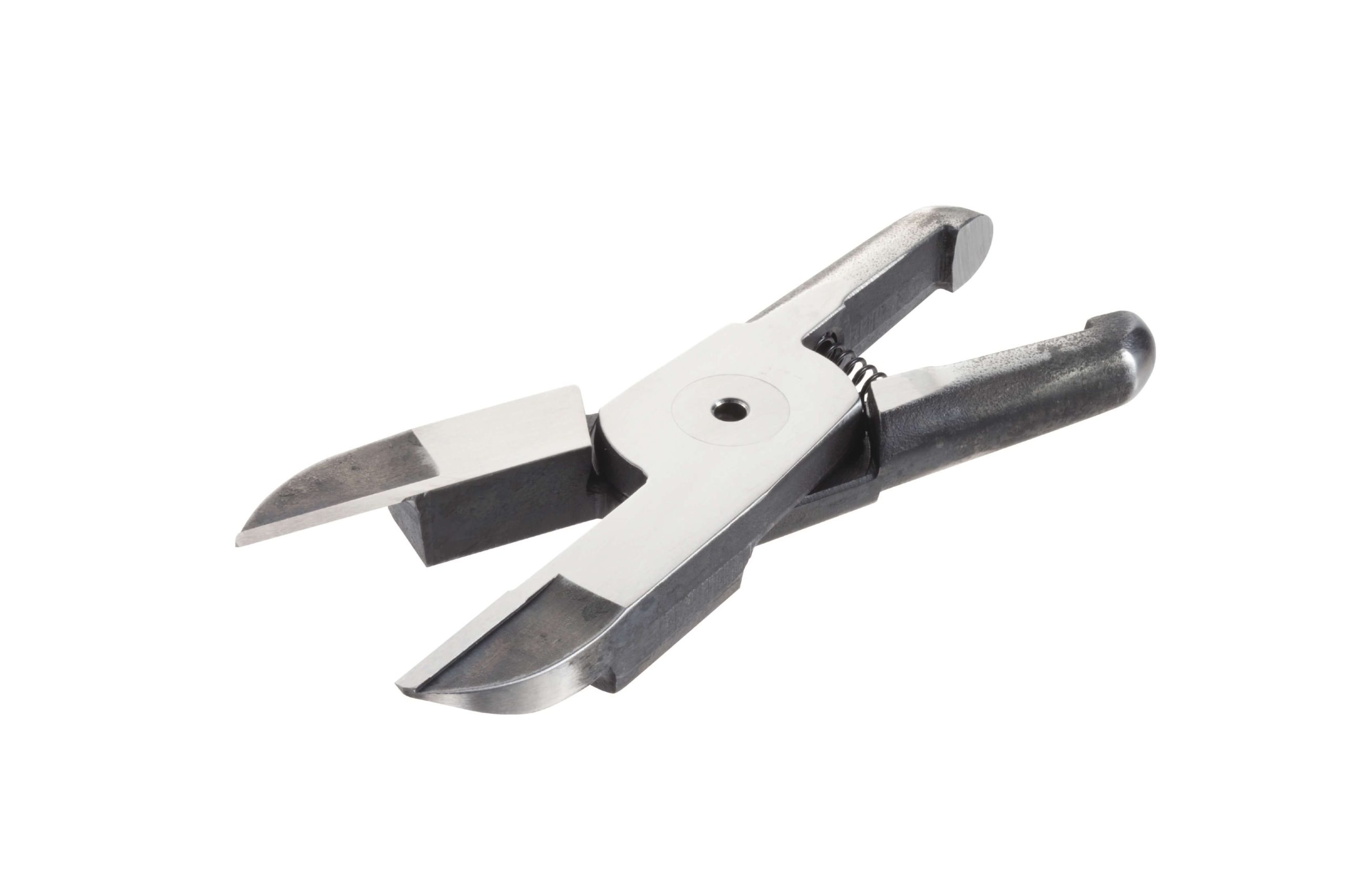

AJL Air Nipper Standard/Quasi-Standard Blades For Plastic

Straight long blades for plastic

Login to see the attachments

Choose a variant

AJL/ This is a long type set of straight blades. This is suitable when there is distance between the nippers and the gate cut portion of the workpiece. N30AJL163 is useful for wide gate processing

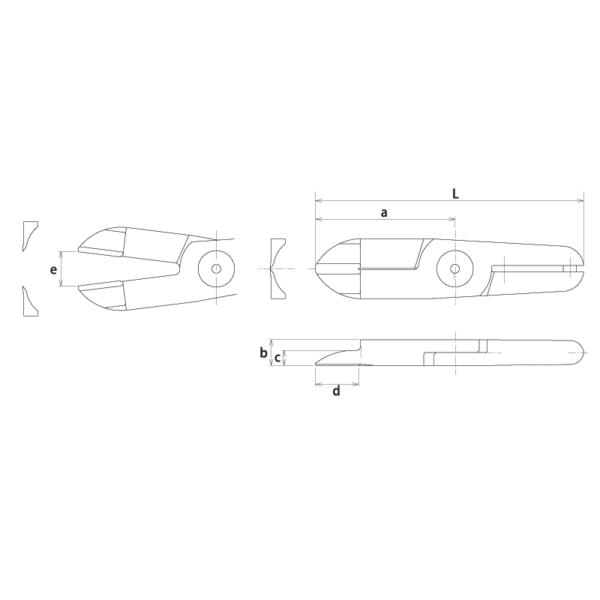

	Size (mm)						Weight (g)	Material	Application model
Model No.	a	b	c	d	e	L	Weight (g)	Material	Application model
N10LAJ141	61	12	7	34	10	115	165	Special alloy steel	GT-NS10L/NR10L
N20AJL	65	12	7	20	16	125	230	Special alloy steel	GT-NS20/NR20/N20/NB20
N20AB39	61	12	7	36	14	121	185	Special alloy steel	GT-NS20/NR20/N20/NB20
N30AJ163	65	17	7	41	17.5	149	355	Special alloy steel	GT-NS30/NR30/N30/NB30
N30AJL	75	17	8	25	19	159	470	Special alloy steel	GT-NS30/NR30/N30/NB30
