For plastic
Choose a variant

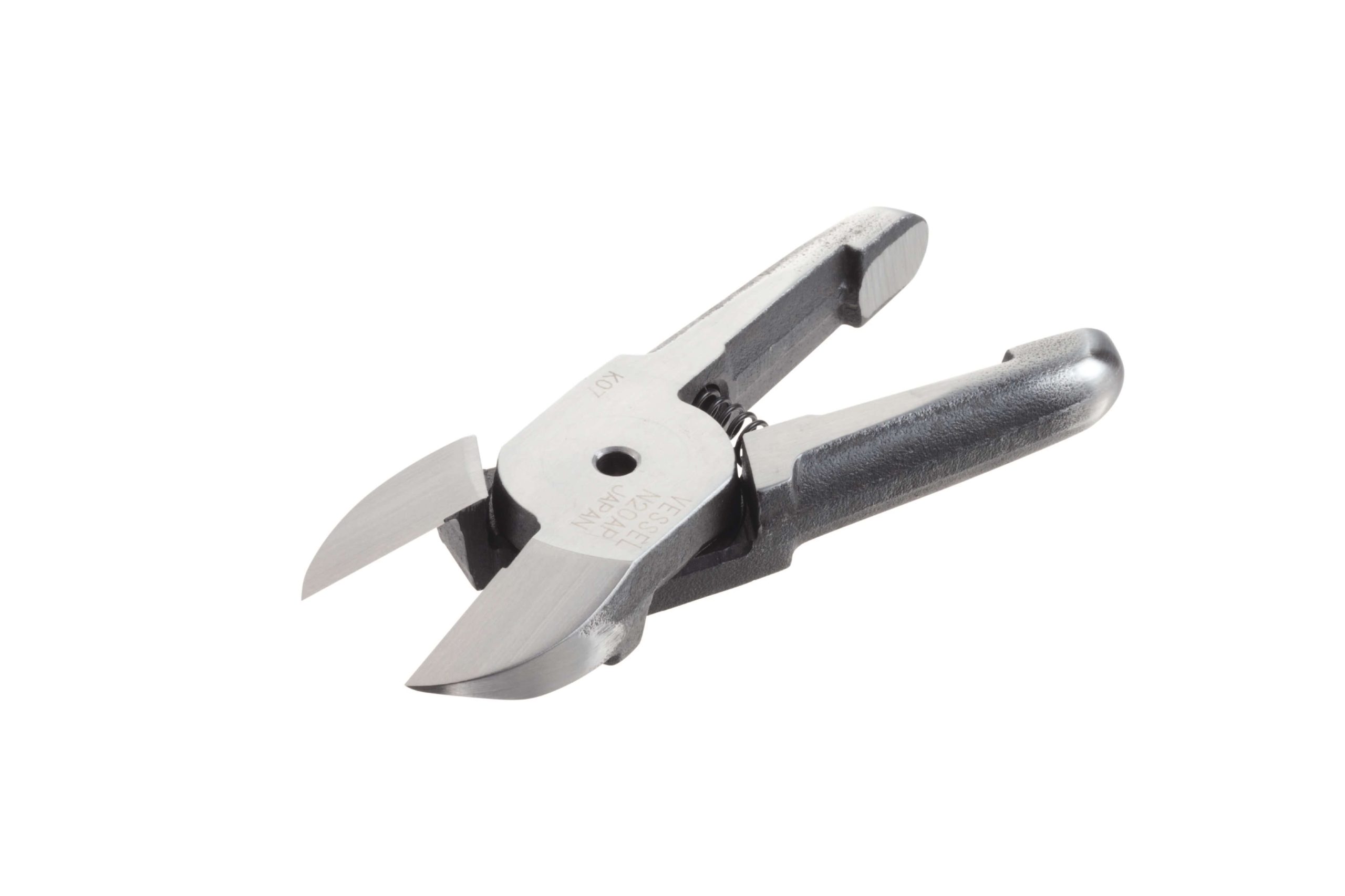

AP/ This is a standard set of blades used to cut plastic. A broad, gentle curve is provided in the cross section for gate processing where the cut end must not be left. (The cutting edge is curved.)

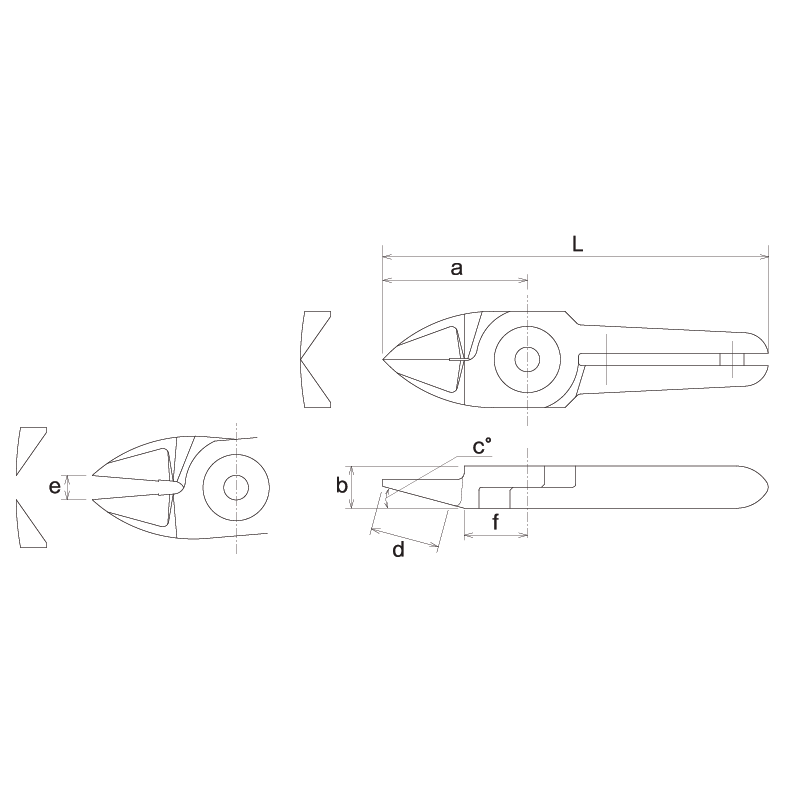

| Model No. | Size (mm) | Weight
(g) |
Material | Application model | ||||||
| a | b | c | d | e | f | L | ||||
| N3AP | 24 | 7 | 15 | 11.5 | 4 | 10.5 | 64 | 35 | Special alloy steel | GT-N3/NS3/NR3 |
| N5AP | 24 | 7 | 15 | 11.5 | 4 | 10.5 | 64 | 40 | Special alloy steel | GT-N5/NS5/NR5 |
| N7AP | 27 | 9 | 30 | 11.5 | 4 | 14.5 | 81 | 80 | Special alloy steel | GT-N7/NS7/NR7 |
| N10AP | 27 | 9 | 30 | 11.5 | 5 | 14.5 | 91 | 85 | Special alloy steel | GT-N10 |
| N10LAP | 35 | 12 | 15 | 16 | 5 | 15 | 89 | 120 | Special alloy steel | GT-NS10L/NR10L |
| N12AP | 35 | 12 | 15 | 16 | 5 | 15 | 105 | 135 | Special alloy steel | GT-N12 |
| N20AP | 35 | 12 | 15 | 16 | 11 | 15 | 95 | 125 | Special alloy steel | GT-NS20 / NR20 / N20 / NB20 |
| N30AP | 66 | 17 | 15 | 38 | 16 | 24 | 150 | 380 | Special alloy steel | GT-NS30 / NR30 / N30 / NB30 |
