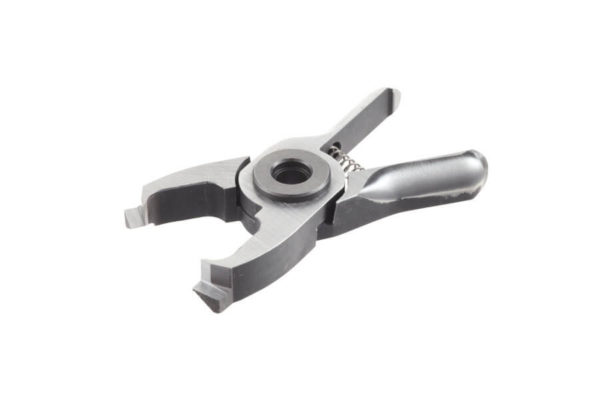

ny10ad_2

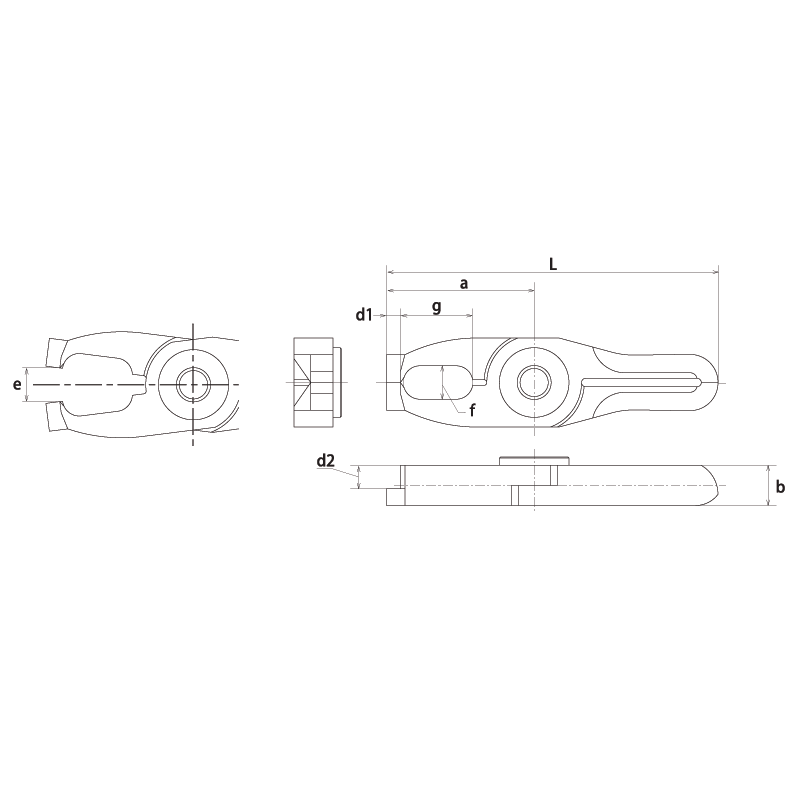

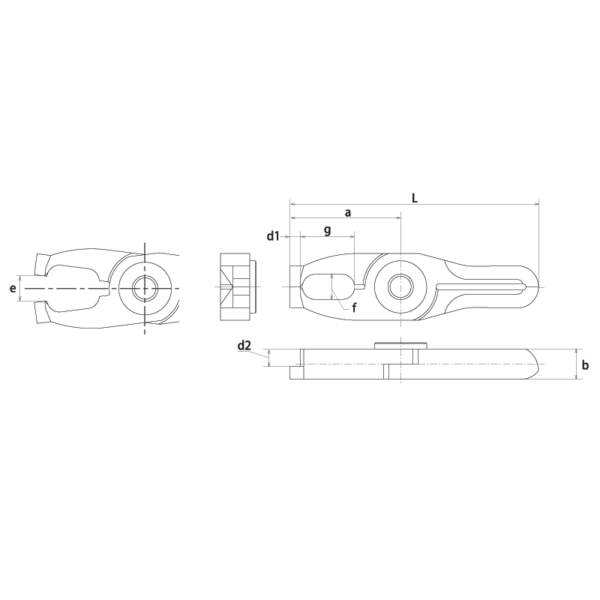

NY25AD_dim

AD Slide-off Air Nipper Horizontal-Type Blades

Lift blades for plastic

Login to see the attachments

Choose a variant

AD - Lift Blades for Plastic (Horizontal Type)

AD - This is used for batch processing of the three-dimensional gate such as ride gate.

Model No.	Size [mm]							Weight [g]	Material	Application model
Model No.	a	b	f × g	d1	d2	e	L	Weight [g]	Material	Application model
NY10AD	26.5	7.2	6 × 13	2.5	4.2	6	59.5	31	Special alloy steel	GT-NY10(-4) / NY10G(-4) / NF10/ NY10S
NY15AD	30	8.2	7 × 14	3	4.7	8	68	45	Special alloy steel	GT-NY15(-4) / NF15
NY25AD	35	10	8 × 17	4	6	9	81	75	Special alloy steel	GT-NY25(-6) / NY 25S
