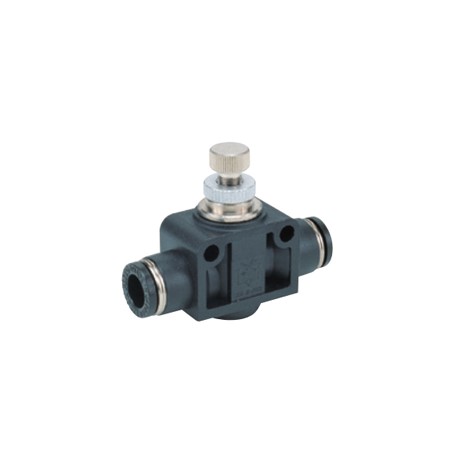

Straight Type of Throttle Valve
Choose a variant

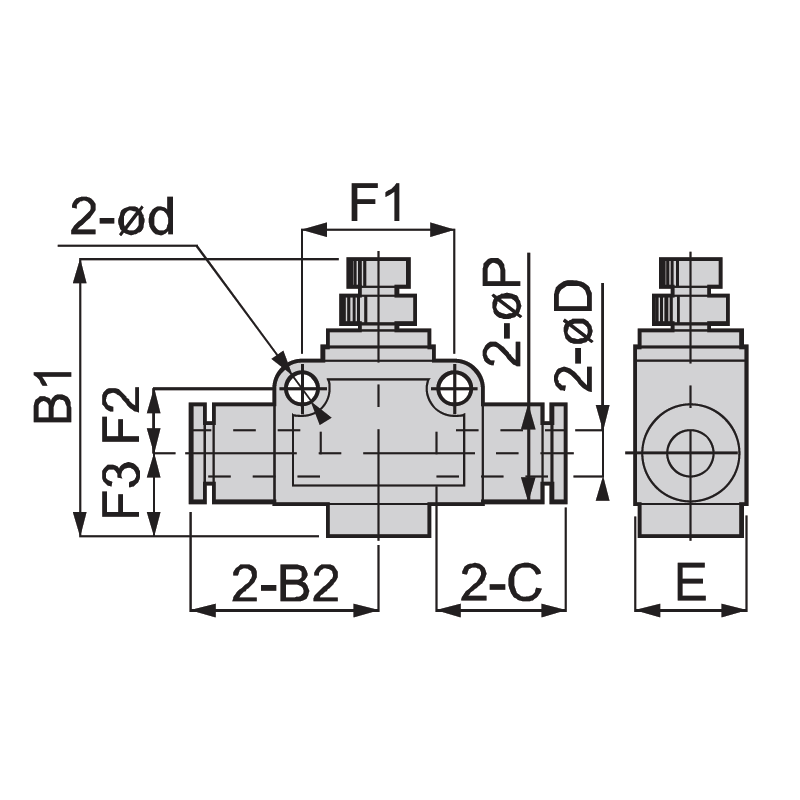

| PN | Model | ØD [mm] | B1 [mm] | B2 [mm] | ØP [mm] | E [mm] | C [mm] | Ød [mm] | F1 [mm] | F2 [mm] | F3 [mm] | Weight | |
| max | min | ||||||||||||
| 1.Y05873 | AJSU4 | 4 | 28.6 | 25.9 | 20.4 | 10.5 | 11 | 14.9 | 3.2 | 14 | 6.5 | 6.5 | 13 g |
| 1.Y05874 | AJSU6 | 6 | 42.6 | 36.5 | 24.9 | 13 | 15 | 16.9 | 4.3 | 20 | 8.5 | 11 | 29 g |
| 1.Y05875 | AJSU8 | 8 | 47.3 | 41.1 | 27.4 | 15 | 18 | 18.1 | 4.3 | 22 | 9.5 | 12 | 43 g |
| 1.Y05876 | AJSU10 | 10 | 53.5 | 45.9 | 31.7 | 18 | 21 | 20.7 | 4.3 | 26 | 11 | 12 | 71 g |
