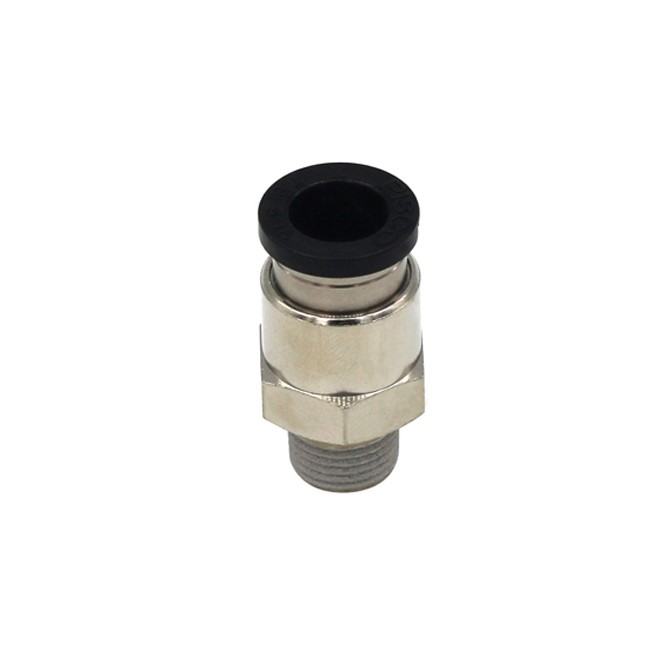

Straight Threaded Hose Fitting
Choose a variant

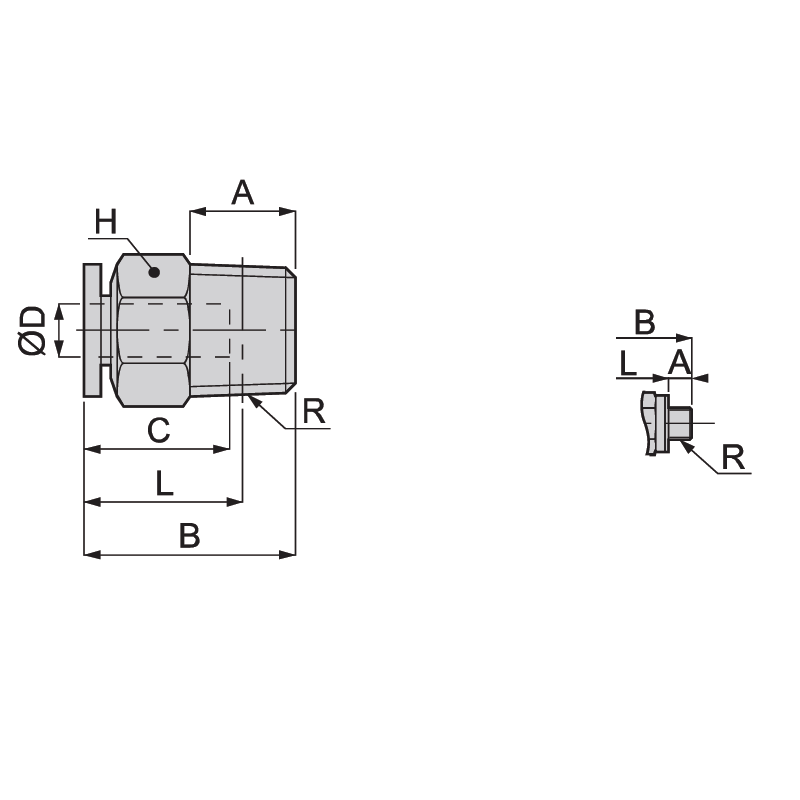

| PN | Model | ØD [mm] | R | A [mm] | B [mm] | L [mm] | C [mm] | H [mm] | Weight |
| 1.Y03809 | APC4-M5 | 4 | M5 x 0.8 | 3 | 20 | 17 | 14.9 | 10 | 6.3 g |
| 1.Y02726 | APC4-01 | R1/8 | 8 | 21 | 17 | 10 | 8.3 g | ||
| 1.Y04049 | APC4-02 | R1/4 | 11 | 15 | 14 | 16 g | |||
| 1.Y03039 | APC6-M5 | 6 | M5 x 0.8 | 3 | 22.1 | 19.1 | 17 | 12 | 9.2 g |
| 1.Y02725 | APC6-01 | R1/8 | 8 | 22.6 | 18.6 | 9.3 g | |||
| 1.Y04048 | APC6-02 | R1/4 | 11 | 24.6 | 18.5 | 14 | 18 g | ||
| 1.Y05531 | APC6-03 | R3/8 | 12 | 23.6 | 17.2 | 17 | 28 g | ||
| 1.Y04537 | APC8-01 | 8 | R1/8 | 8 | 27.9 | 23.9 | 18.2 | 14 | 16 g |
| 1.Y05532 | APC8-02 | R1/4 | 11 | 26.6 | 20.6 | ||||
| 1.Y05533 | APC8-03 | R3/8 | 12 | 23.9 | 17.6 | 17 | 24 g | ||
| 1.Y05534 | APC10-01 | 10 | R1/8 | 8 | 30.3 | 26.3 | 20.7 | 17 | 24 g |
| 1.Y05535 | APC10-02 | R1/4 | 11 | 29.5 | 23.8 | 21 g | |||
| 1.Y05536 | APC10-03 | R3/8 | 12 | 29.3 | 23 | 27 g |
