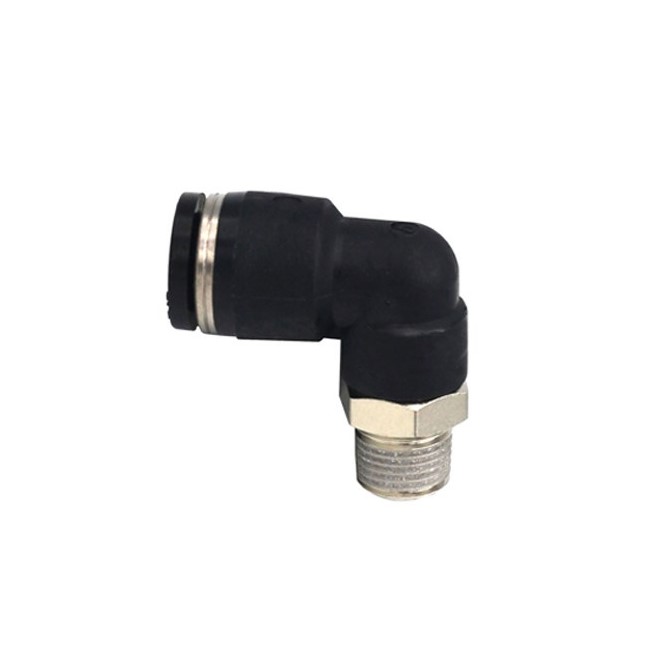

L-type Threaded Hose Fitting
Choose a variant

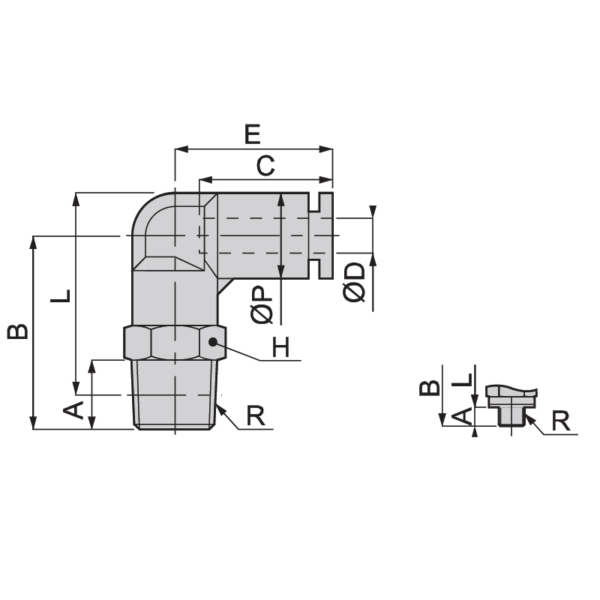

| PN | Model | ØD [mm] | R | A [mm] | B [mm] | L [mm] | ØP [mm] | C [mm] | E [mm] | H [mm] | Weight |
| 1.Y02724 | APL4-M5 | 4 | M5 x 0.8 | 3 | 20.3 | 22.3 | 10 | 14.9 | 18 | 10 | 8 g |
| 1.Y02810 | APL4-01 | R1/8 | 8 | 23.2 | 24.3 | 11 g | |||||
| 1.Y03097 | APL4-02 | R1/4 | 11 | 26.3 | 25.3 | 14 | 21 g | ||||
| 1.Y02809 | APL6-M5 | 6 | M5 x 0.8 | 3 | 22 | 25.3 | 12.5 | 16.8 | 19.8 | 12 | 13 g |
| 1.Y02722 | APL6-01 | R1/8 | 8 | 25 | 27.3 | 14 g | |||||
| 1.Y03988 | APL6-02 | R1/4 | 11 | 28 | 28.2 | 14 | 22 g | ||||
| 1.Y05539 | APL6-03 | R3/8 | 12 | 29.8 | 29.7 | 17 | 35 g | ||||
| 1.Y02723 | APL8-01 | 8 | R1/8 | 8 | 28 | 31.3 | 14.5 | 18.1 | 22.7 | 14 | 19 g 24 g |
| 1.Y03812 | APL8-02 | R1/4 | 11 | 31 | 32.2 | ||||||
| 1.Y05540 | APL8-03 | R3/8 | 12 | 32.8 | 33.7 | 17 | 37 g | ||||
| 1.Y03096 | APL10-01 | 10 | R1/8 | 8 | 33 | 37.8 | 17.5 | 20.2 | 26.2 | 17 | 31 g |
| 1.Y05541 | APL10-02 | R1/4 | 11 | 36 | 38.7 | 34 g | |||||
| 1.Y05542 | APL10-03 | R3/8 | 12 | 37 | 39.4 | 21 | 43 g |
