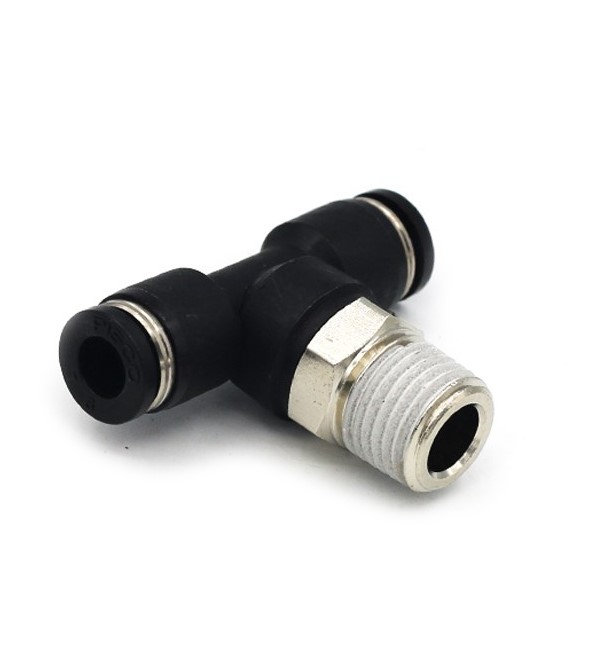

T-type Threaded Hose Fitting
Choose a variant

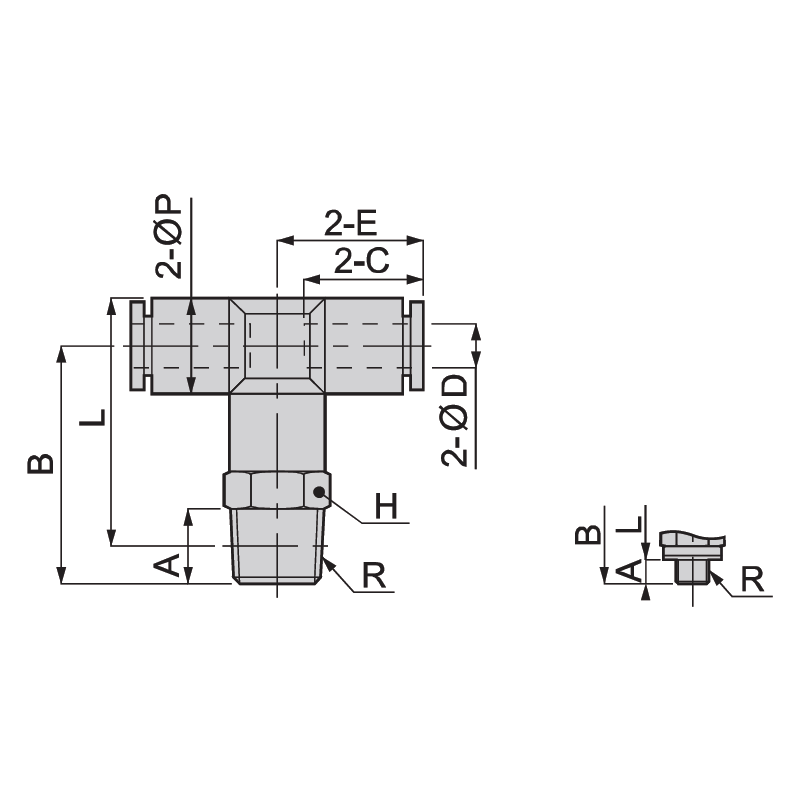

| PN | Model | ØD [mm] | R | A [mm] | B [mm] | L [mm] | ØP [mm] | C [mm] | E [mm] | H [mm] | Weight |
| 1.Y05571 | APT4-M5 | 4 | M5 x 0.8 | 3 | 20.2 | 22.2 | 10 | 14.9 | 16.9 | 10 | 11 g |
| 1.Y05572 | APT4-01 | R1/8 | 8 | 23.2 | 24.2 | 14 g | |||||
| 1.Y05573 | APT4-02 | R1/4 | 11 | 26.2 | 25.2 | 14 | 23 g | ||||
| 1.Y05574 | APT6-M5 | 6 | M5 x 0.8 | 3 | 23 | 26.5 | 13 | 17 | 20.15 | 12 | 16 g |
| 1.Y05575 | APT6-01 | R1/8 | 8 | 26 | 28.5 | 18 g | |||||
| 1.Y05576 | APT6-02 | R1/4 | 11 | 29 | 29.5 | 14 | 26 g | ||||
| 1.Y05577 | APT6-03 | R3/8 | 12 | 30.8 | 31 | 17 | 39 g | ||||
| 1.Y05578 | APT8-01 | 8 | R1/8 | 8 | 26.3 | 29.8 | 15 | 18.4 | 22.4 | 14 | 23 g |
| 1.Y05579 | APT8-02 | R1/4 | 11 | 29.3 | 30.8 | 29 g | |||||
| 1.Y05580 | APT8-03 | R3/8 | 12 | 31.1 | 32.3 | 17 | 42 g | ||||
| 1.Y05581 | APT10-01 | 10 | R1/8 | 8 | 33 | 37.8 | 17.5 | 20.2 | 25.2 | 17 | 38 g |
| 1.Y05582 | APT10-02 | R1/4 | 11 | 36 | 38.7 | 42 g | |||||
| 1.Y05583 | APT10-03 | R3/8 | 12 | 37 | 39.4 | 50 g |
