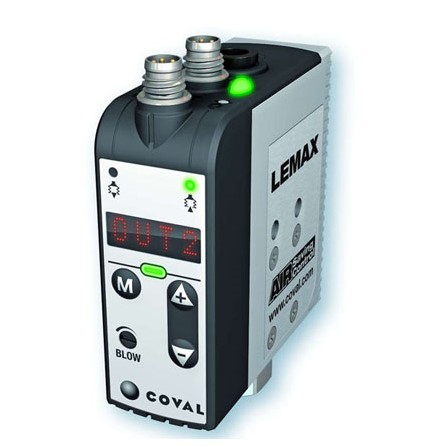

Vacuum Module VP-LEMAX & LCPX Series

PN Model
1.Y05969 L E M A X 9 0 X 1 4 S
1.Y05970 LC PX 9 0 X 1 4 S L 1 5 P Q 1



Nozzle diameter

Selecting the nozzle diameter
Ø nozzle Venturi characteristics
during "ASC" off operation
ASC" operation gripping at 65% vacuum, vacuum shutoff at 75% Time for a volume of 1L
air drawn in air

consumed

grip time
(65% vacuum)
time to75% vacuum air consumed
1.4mm 70 NI/min 90 NI/min 0.99 s 1.38 s 2.2 NI
