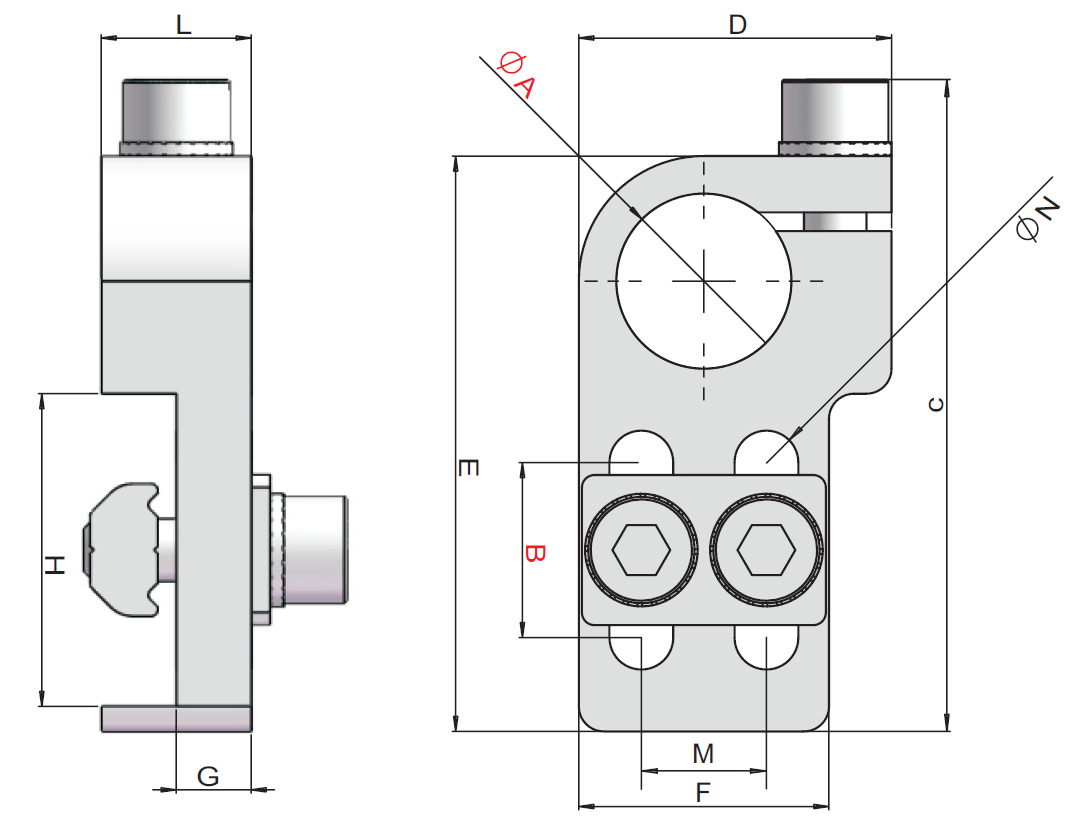

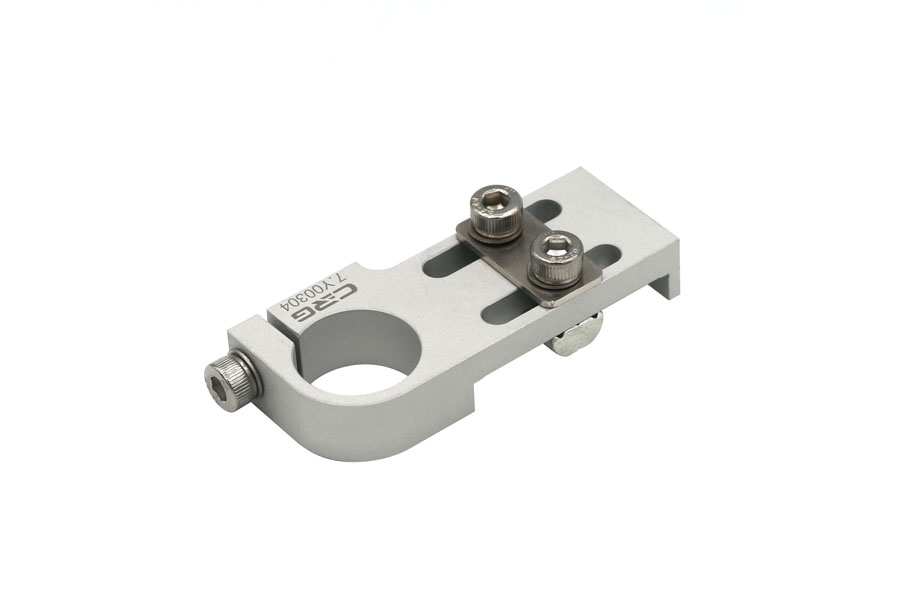

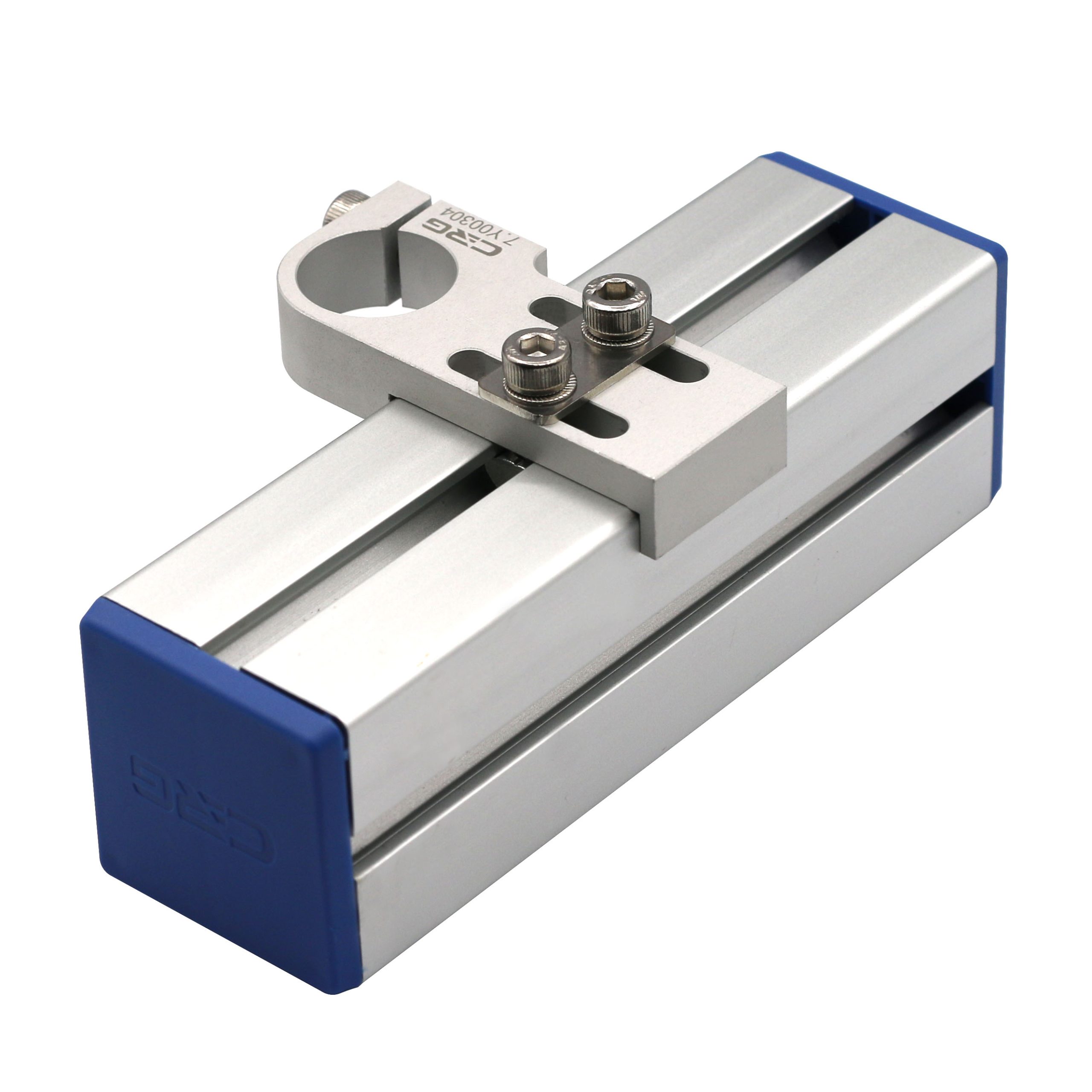

| PN | 7.Y00300 | 7.Y00301 | 7.Y00775 | 7.Y00864 | 7.Y00302 | 7.Y00014 | 7.Y00304 | |||
| Model | SMBE-1010 | SMBE-1014 | SMBE-1210 | SMBE-1214 | SMBE-1414 | SMBE-2014 | SMBE-2022 | |||
| A [mm] | Ø10 | Ø10 | Ø12 | Ø12 | Ø14 | Ø20 | Ø20 | |||
| B [mm] | 10 | 14 | 10 | 14 | 14 | 14 | 22 | |||
| C [mm] | 43 | 49 | 43 | 50 | 52.1 | 57.1 | 74.1 | |||
| D [mm] | 20 | 20 | 20.5 | 20.5 | 25 | 30 | 30 | |||
| E [mm] | 38 | 44 | 38 | 45 | 46 | 51.5 | 68 | |||
| F [mm] | 16 | 16 | 16 | 16 | 20 | 25 | 25 | |||
| G [mm] | 4.5 | 4.5 | 4.5 | 4.5 | 6 | 6.2 | 6 | |||
| H [mm] | 18 | 25 | 18 | 25 | 25 | 25 | 40 | |||
| L [mm] | 8 | 8 | 8 | 8 | 12 | 12 | 12 | |||
| M [mm] | 8 | 8 | 8 | 8 | 10 | 15 | 15 | |||
| N [mm] | Ø 4.2 | Ø 4.2 | Ø 4.2 | Ø 4.2 | Ø 5.2 | Ø 5.2 | Ø 5.2 | |||
| PEP1818 | √ | - | √ | - | - | - | - | |||
| PEP2510 | - | √ | - | √ | √ | √ | - | |||
| PEP2518 | - | √ | - | - | √ | √ | - | |||
| PEP2525 | - | √ | - | - | √ | √ | - | |||
| PEP5025 | - | √ | - | - | √ | √ | - | |||
| PEP4040 | - | - | - | - | - | - | √ | |||
| Accessories selection | ||||||||||
| Screws | PTC-M4L12*2 | PTC-M4L12*2 | PTC-M4L12*2 | PTC-M4L12*2 | PTC-M5L14*2 | PTC-M5L14*2 | PTC-M5L14*2 | |||
| Single hole shim | PTS-M4*2 | PTS-M4*2 | PTS-M4*2 | PTS-M4*2 | PTS-M5*2 | PTS-M5*2 | PTS-M5*2 | |||
| T-Nuts | PTN-M4P8*1 | PTN-M4P8*1 | PTN-M4P8*1 | PTN-M4P8*1 | PTN-M5P10*1 | PTN-M5P15*1 | PTN-M5P15*1 | |||
| Double holes shim | PTD-M4P8*1 | PTD-M4P8*1 | PTD-M4P8*1 | PTD-M4P8*1 | PTD-M5P10*1 | PTD-M5P15*1 | PTD-M5P15*1 | |||
| Weight | 20 g | 21 g | 22 g | 10 g | 34 g | 45 g | 48 g | |||
