Choose a variant

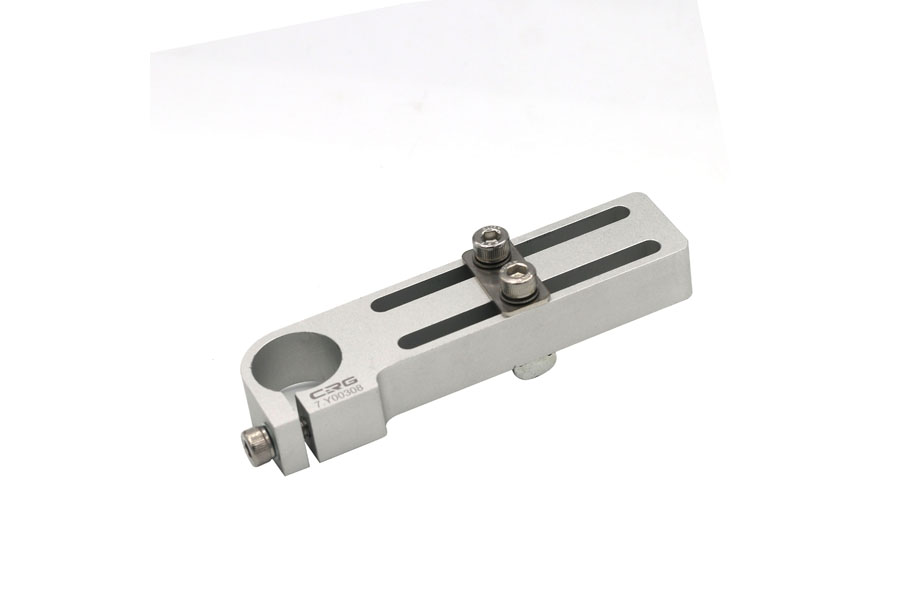

| PN | 7.Y00725 | 7.Y00777 | 7.Y00307 | 7.Y00308 | 7.Y00309 |
| Model | SMBE2-1040 | SMBE2-1240 | SMBE2-1450 | SMBE2-2060 | SMBE2-3060 |

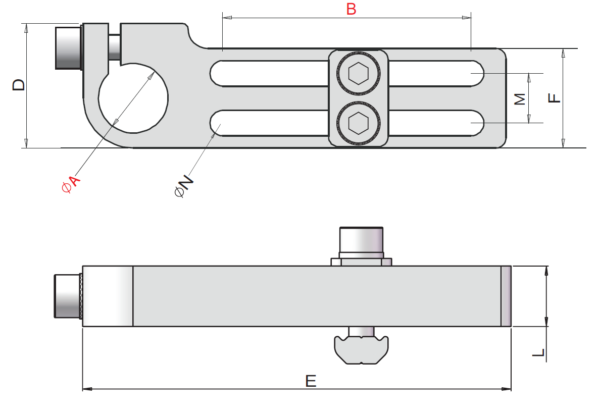

| A [mm] | Ø10 | Ø12 | Ø14 | Ø20 | Ø30 |
| B [mm] | 40 | 40 | 50 | 60 | 60 |
| C [mm] | 75 | 75 | 90.6 | 110.6 | 122.2 |
| D [mm] | 20 | 20.5 | 25 | 30 | 42 |
| E [mm] | 70 | 70 | 85 | 105 | 115 |
| F [mm] | 16 | 16 | 20 | 25 | 35 |
| L [mm] | 8.3 | 8.3 | 12 | 15 | 20 |
| M [mm] | 8 | 8 | 10 | 15 | 22 |
| N [mm] | Ø4.2 | Ø4.2 | Ø5.2 | Ø5.2 | Ø5.2 |
| Accessories selection | |||||
| Screws | PTC-M4L16*2 | PTC-M4L16*2 | PTC-M5L22*2 | PTC-M5L25*2 | PTC-M5L30*2 |
| Single hole shim | PTS-M4*2 | PTS-M4*2 | PTS-M5*2 | PTS-M5*2 | PTS-M5*2 |
| T-Nuts | PTN-M4P8*1 | PTN-M4P8*1 | PTN-M5P10*1 | PTN-M5P15*1 | PTN-M5P22*1 |
| Double holes shim | PTD-M4P8*1 | PTD-M4P8*1 | PTD-M5P10*1 | PTD-M5P15*1 | PTD-M5P22*1 |
| Weight | 30 g | 40 g | 60 g | 85 g | 175 g |
