Choose a variant

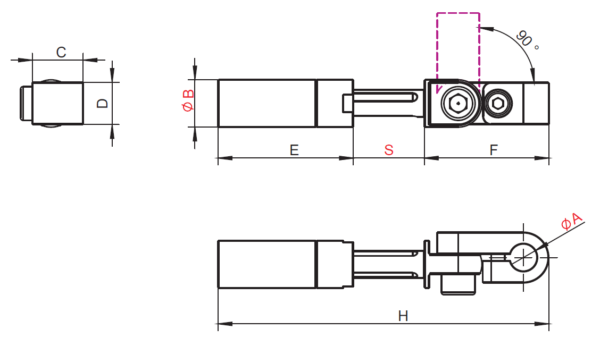

| PN | Model | A [mm] | B [mm] | C [mm] | D [mm] | E [mm] | F [mm] | H [mm] | S [mm] | Weight |
| 8.Y00241 | GSR1421-08 | 8 | 14 | 15 | 12.5 | 40 | 36.75 | 97.75 | 21 | 36 g |

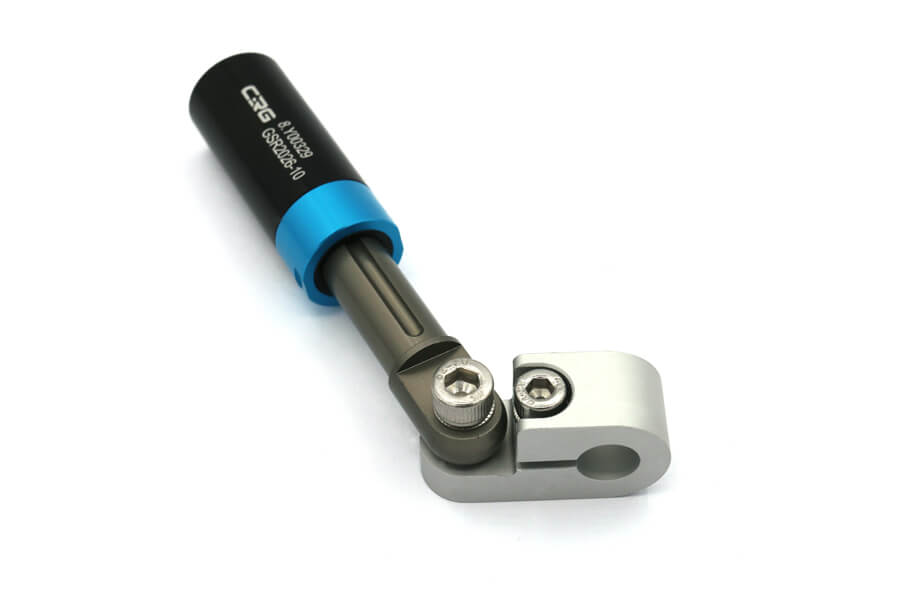

| 8.Y00329 | GSR2026-10 | 10 | 20 | 20 | 15 | 50 | 45.5 | 121.5 | 26 | 74 g |
| 8.Y00243 | GSR2026-12 | 12 | 20 | 20 | 15 | 50 | 45.5 | 121.5 | 26 | 73 g |
| 8.Y00330 | GSR2051-10 | 10 | 20 | 20 | 15 | 84 | 45.5 | 180.5 | 51 | 111 g |
| 8.Y00331 | GSR2051-12 | 12 | 20 | 20 | 15 | 84 | 45.5 | 180.5 | 51 | 110 g |
