Choose a variant

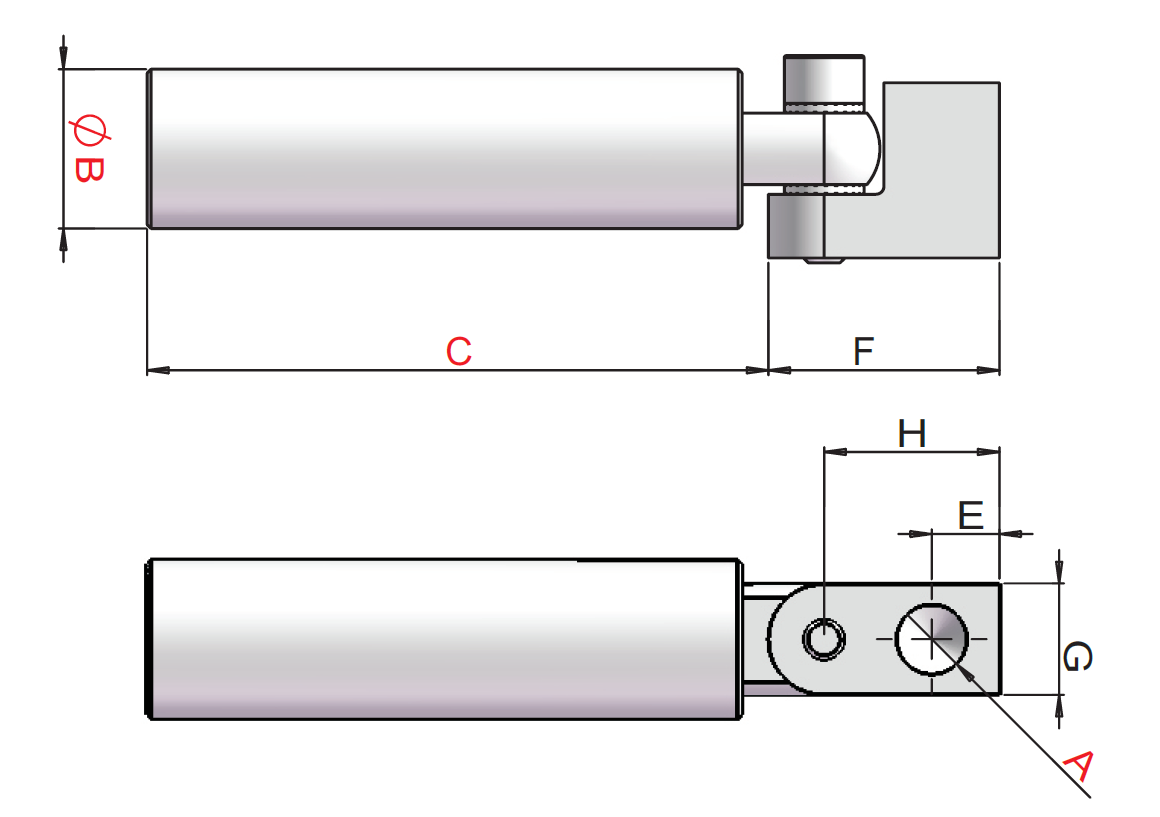

| PN | Model | A | B
[mm] |
C
[mm] |
D
[mm] |
E
[mm] |
F
[mm] |
G
[mm] |
H
[mm] |
L
[mm] |
Weight |
| 7.Y00432 | SEAV-M510L45 | M5 | Ø10 | 45 | 16.5 | 5.5 | 19 | 10 | 22 | 11 | 18 g |
| 7.Y00433 | SEAV-M510L90 | M5 | Ø10 | 90 | 16.5 | 5.5 | 19 | 10 | 22 | 11 | 27 g |
| 7.Y00258 | SEAV- G1814L60 | G1/8 | Ø14 | 60 | 22 | 8.5 | 29 | 14 | 22 | 13.5 | 33 g |
| 7.Y00434 | SEAV- G1814L120 | G1/8 | Ø14 | 120 | 22 | 8.5 | 29 | 14 | 22 | 13.5 | 50 g |
| 7.Y00435 | SEAV- G1820L78 | G1/8 | Ø20 | 78 | 22 | 8.5 | 29 | 14 | 22 | 13.5 | 60 g |
| 7.Y00247 | SEAV- G1820L153 | G1/8 | Ø20 | 153 | 22 | 8.5 | 29 | 14 | 22 | 13.5 | 100 g |
| 7.Y00436 | SEAV- G1420L75 | G1/4 | Ø20 | 75 | 27 | 12 | 38 | 20 | 28 | 15 | 75 g |
| 7.Y00437 | SEAV- G1420L150 | G1/4 | Ø20 | 150 | 27 | 12 | 38 | 20 | 28 | 15 | 115 g |
