Choose a variant

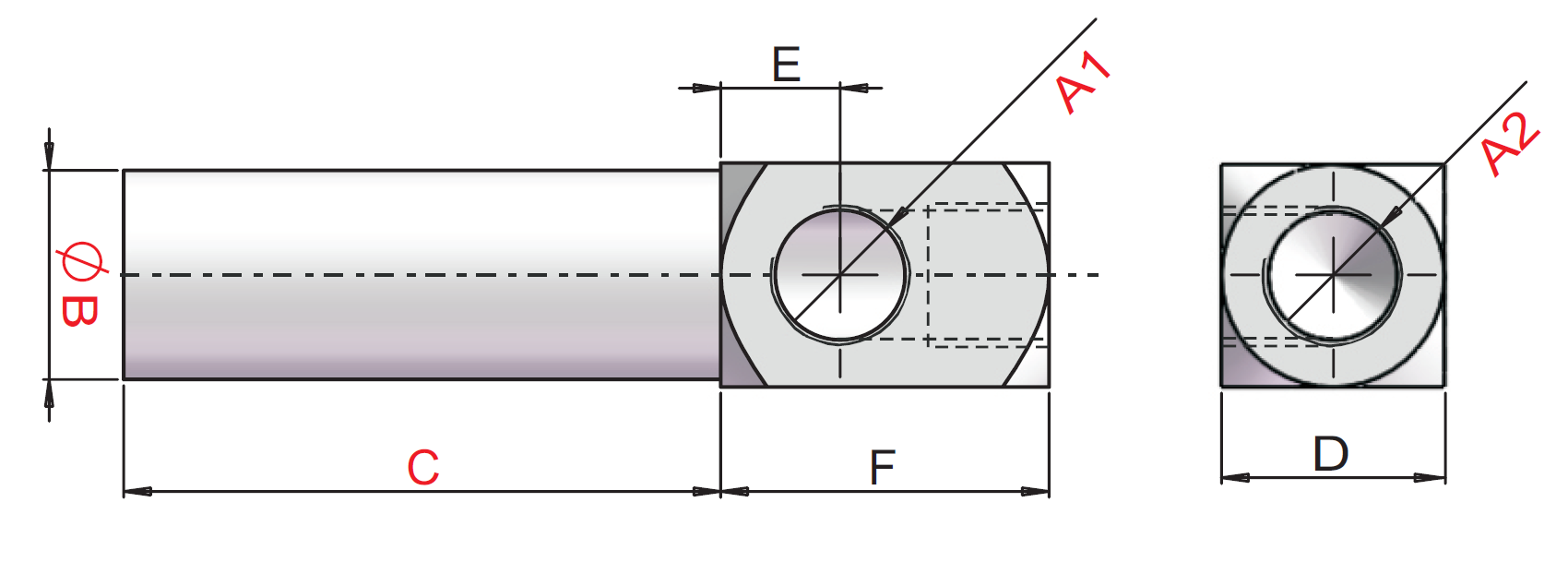

| PN | Model | A1 | A2 | B [mm] | C [mm] | D [mm] | E [mm] | F [mm] | Weight |
| 7.Y00410 | SVE-M51030 | M5 | M5 | Ø10 | 30 | 11 | 6 | 16 | 10 g |
| 7.Y00411 | SVE-M51060 | M5 | M5 | Ø10 | 60 | 11 | 6 | 16 | 13 g |
| 7.Y00412 | SVE-M51090 | M5 | M5 | Ø10 | 90 | 11 | 6 | 16 | 17 g |
| 7.Y00772 | SVE-M51230 | M5 | M5 | Ø12 | 30 | 13 | 7 | 17 | 12 g |
| 7.Y00773 | SVE-M51260 | M5 | M5 | Ø12 | 60 | 13 | 7 | 17 | 15 g |
| 7.Y00774 | SVE-M51290 | M5 | M5 | Ø12 | 90 | 13 | 7 | 17 | 19 g |

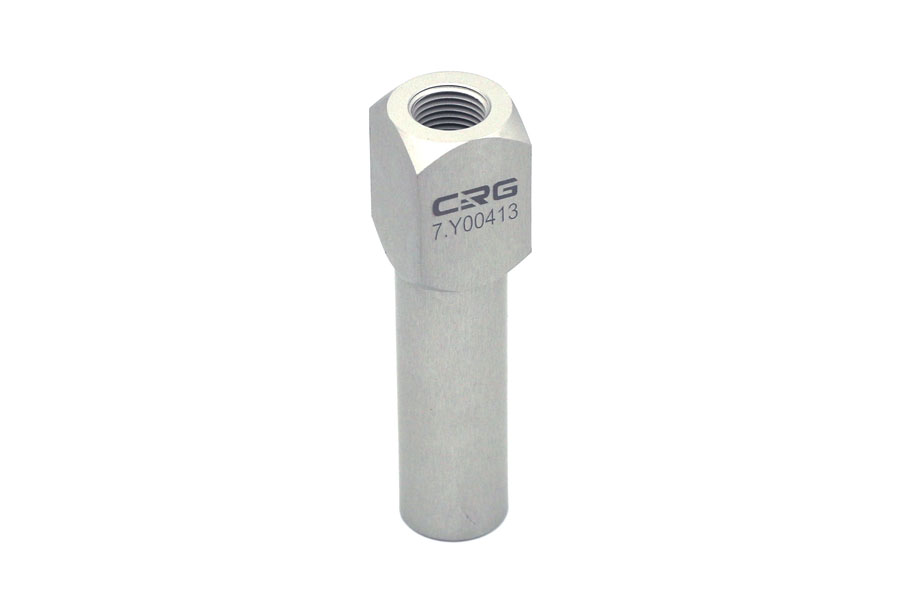

| 7.Y00413 | SVE-G181440 | G1/8 | G1/8 | Ø14 | 40 | 15 | 8 | 22 | 17 g |
| 7.Y00414 | SVE-G181480 | G1/8 | G1/8 | Ø14 | 80 | 15 | 8 | 22 | 25 g |
| 7.Y00415 | SVE-G1814120 | G1/8 | G1/8 | Ø14 | 120 | 15 | 8 | 22 | 32 g |
| 7.Y00008 | SVE-G142050 | G1/8 | G1/4 | Ø20 | 50 | 20 | 8 | 23 | 40 g |
| 7.Y00009 | SVE-G1420100 | G1/8 | G1/4 | Ø20 | 100 | 20 | 8 | 23 | 60 g |
| 7.Y00010 | SVE-G1420150 | G1/8 | G1/4 | Ø20 | 150 | 20 | 8 | 23 | 75 g |
