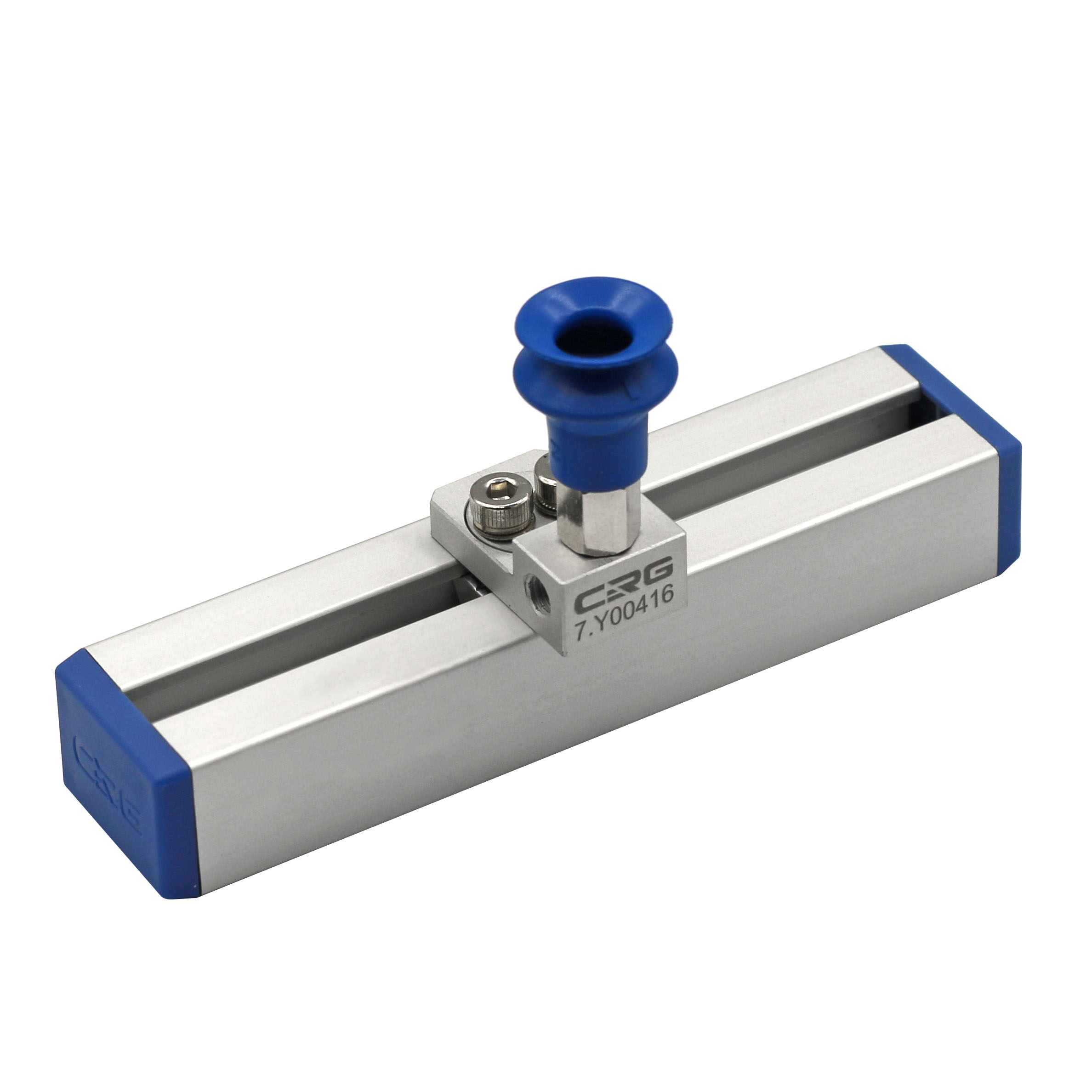

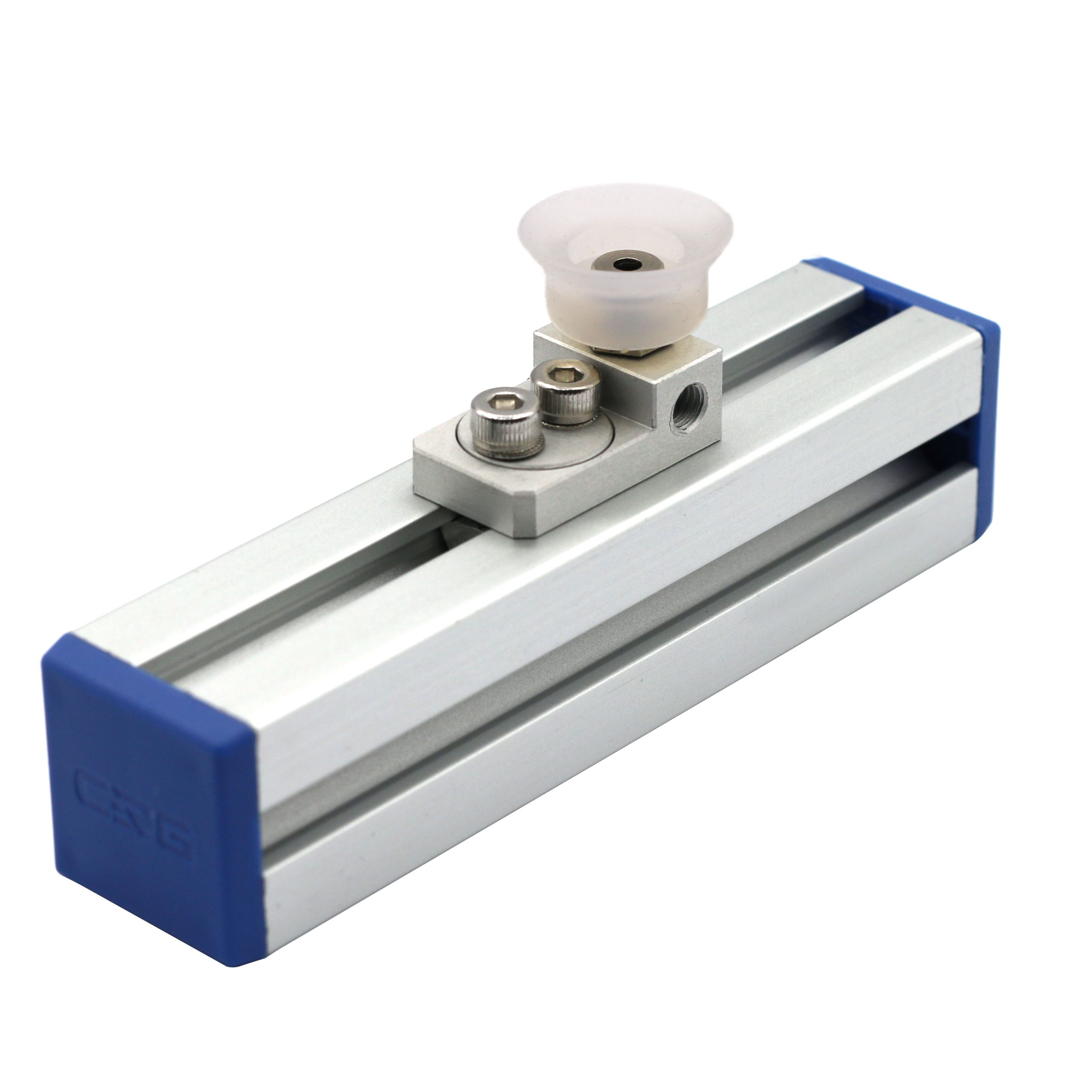

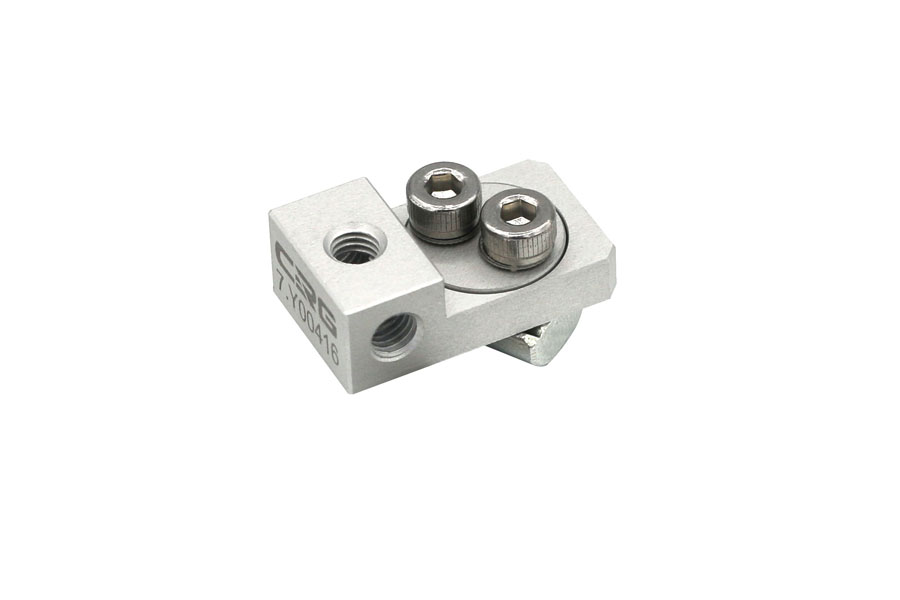

SVD Mounting Bracket For Vacuum Cup

Variation table
Register to place order

Login to see the attachments

Choose a variant

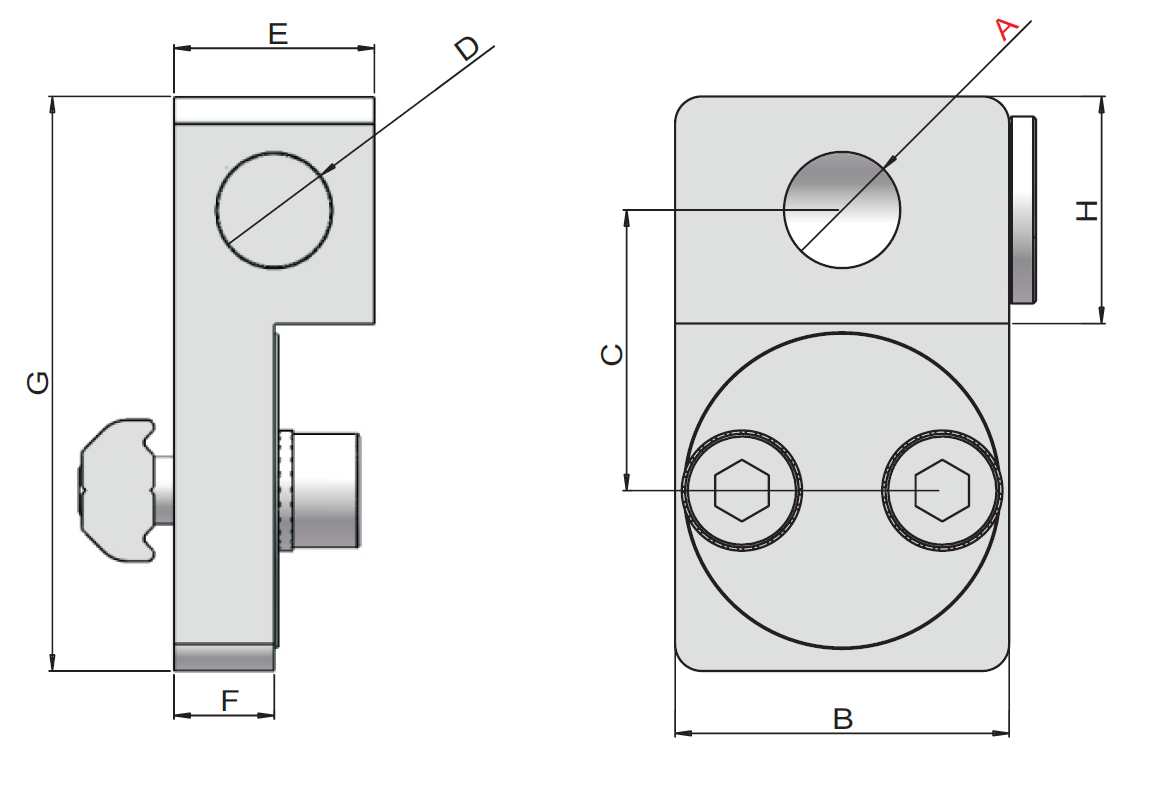

PN 7.Y00416 7.Y00417 7.Y00418
Model SVD-M5 SVD- G18 SVD- G14
A M5  G1/8  G1/4
B [mm] 16 25 25
C [mm] 13 21 21
D M5  G1/8  G1/8
E [mm] 10 15 15
F [mm] 5.3 7.8 7.8
G [mm] 28 43 43
H [mm] 10 17 17
PEP2518 √ √ √
PEP2525 √ √ √
PEP5025 √ √ √
PEP4040 - √ √
Accessories selection
Screws PTC-M41-12*2 PTC-M51-16*2 PTC-M51-16*2
Single hole shim PTS-M4*2 PTS-M5*2 PTS-M5*2
T-Nuts PTN-M4P8*1 PTN-M5P15*1 PTN-M5P15*1
Weight 15 g 45 g 42 g
