Choose a variant

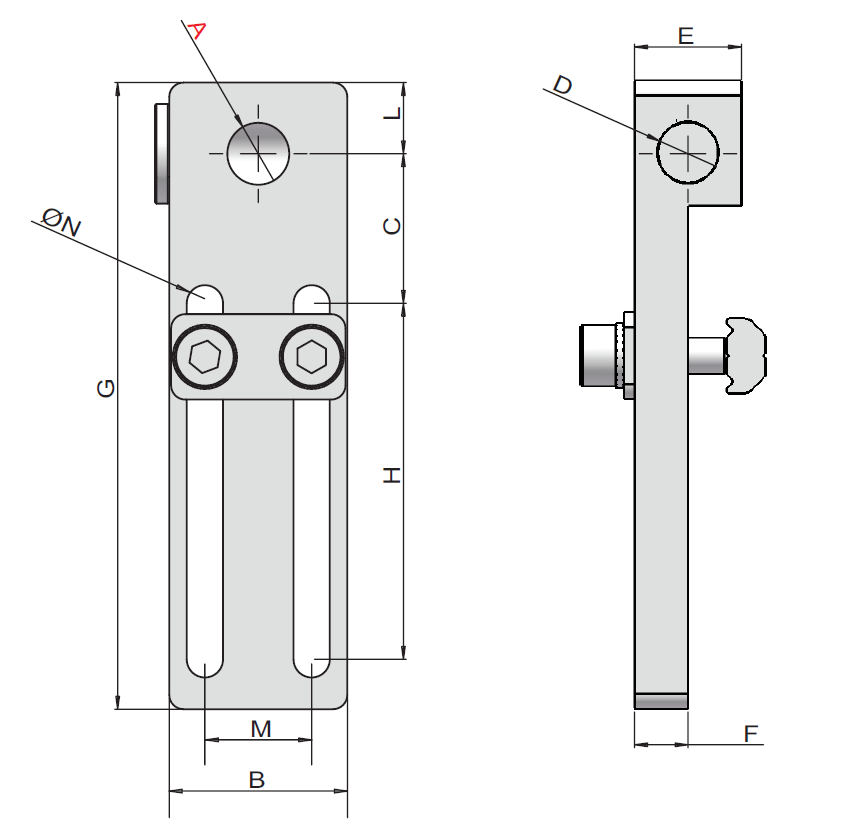

| PN | 7.Y00328 | 7.Y00238 | 7.Y00239 |
| Model | SVC-M5 | SVC- G18 | SVC- G14 |
| A | M5 | G1/8 | G1/4 |
| B [mm] | 16 | 25 | 25 |
| C [mm] | 14 | 21 | 21 |
| D | M5 | G1/8 | G1/8 |
| E [mm] | 8 | 15 | 15 |
| F [mm] | 4 | 7.5 | 7.5 |
| G [mm] | 65 | 88 | 88 |
| H [mm] | 40 | 50 | 50 |
| L [mm] | 6 | 10 | 10 |
| M [mm] | 8 | 15 | 15 |
| N [mm] | Ø4.2 | Ø5.2 | Ø5.2 |
| PEP2518 | √ | √ | √ |
| PEP2525 | √ | √ | √ |
| PEP5025 | √ | √ | √ |
| PEP4040 | - | √ | √ |
| Accessories selection | |||
| Screws | PTC-M4L12*2 | PTC-M5L16*2 PTS- | PTC-M5L16*2 |
| Single hole shim | PTS-M4*2 | M5*2 | PTS-M5*2 |
| T-Nuts | PTN-M4P8*1 | PTN-M5P15*1 | PTN-M5P15*1 |
| Double holes shim | PTD-M4P8*1 | PTD-M5P15*1 | PTD-M5P15*1 |
| Weight | 20 g | 60 g | 60 g |
