Choose a variant
Functions: anti-skid, oil-proof and water-proof (mostly used for adsorption of automobile sheet metal, glass, etc.)

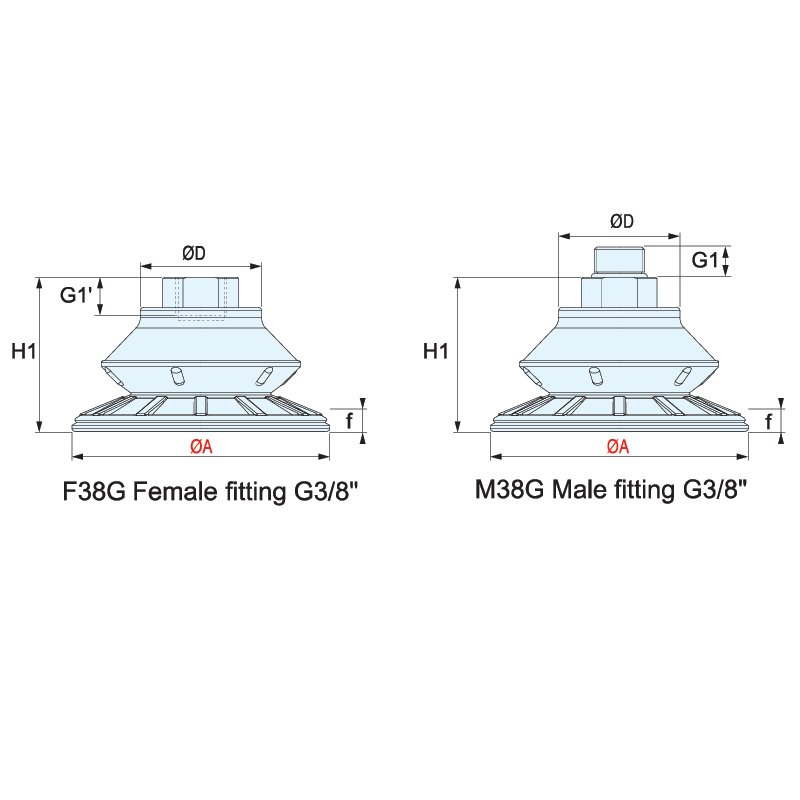

| Model | ØA at rest |
ØA gripping |
Volume
[cm3] |
Horizontal
[N] |
Vertical
[N] |
Rmin | Rmin | Ø bore | H1 | f | G1 | G1' | ØD
[mm] |
Weight [g] | PN | ||
| F38G | M38G | F38G | M38G | ||||||||||||||
| VBC 22 | 21.5 | 22 | 1.6 | 17 | 17 | 25 | 30 | 6.3 | 32 | 6 | 10 | 12.6 | 37 | 10 | 14 | 1.Y08456 | 1.Y08486 |
| VBC 30 | 32 | 34 | 5 | 40 | 40 | 30 | 32 | 6.3 | 31 | 8 | 10 | 12.6 | 37 | 14 | 19 | 1.Y08457 | 1.Y08487 |
| VBC 45 | 47 | 48.7 | 11.47 | 70 | 90 | 36 | 45 | 6.3 | 36 | 11 | 10 | 12.6 | 37 | 22 | 26 | 1.Y08458 | 1.Y08488 |
| VBC 60 | 62 | 64.5 | 25.31 | 140 | 130 | 44 | 62 | 6.3 | 41 | 14 | 10 | 12.6 | 39 | 32 | 37 | 1.Y08459 | 1.Y08489 |
| VBC 85 | 85 | 88 | 66.54 | 230 | 240 | 65 | 115 | 6.3 | 51 | 22 | 10 | 12.6 | 41 | 64 | 69 | 1.Y08460 | 1.Y08490 |
| VBC 115 | 115 | 119 | 141.47 | 420 | 390 | 84 | 140 | 6.3 | 53 | 24 | 10 | 12.6 | 55 | 103 | 107 | 1.Y08461 | 1.Y08491 |
