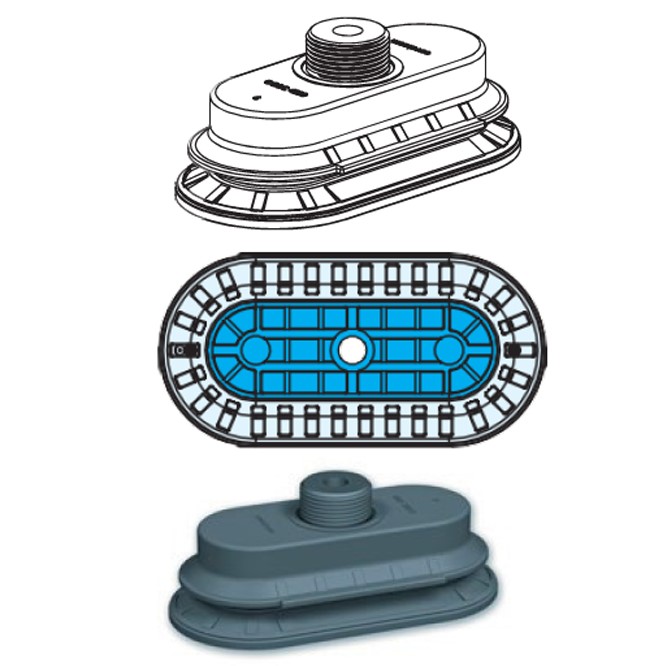

Functions: anti-skid, oil-proof and water-proof (mostly used for adsorption of automobile sheet metal, glass, etc.)

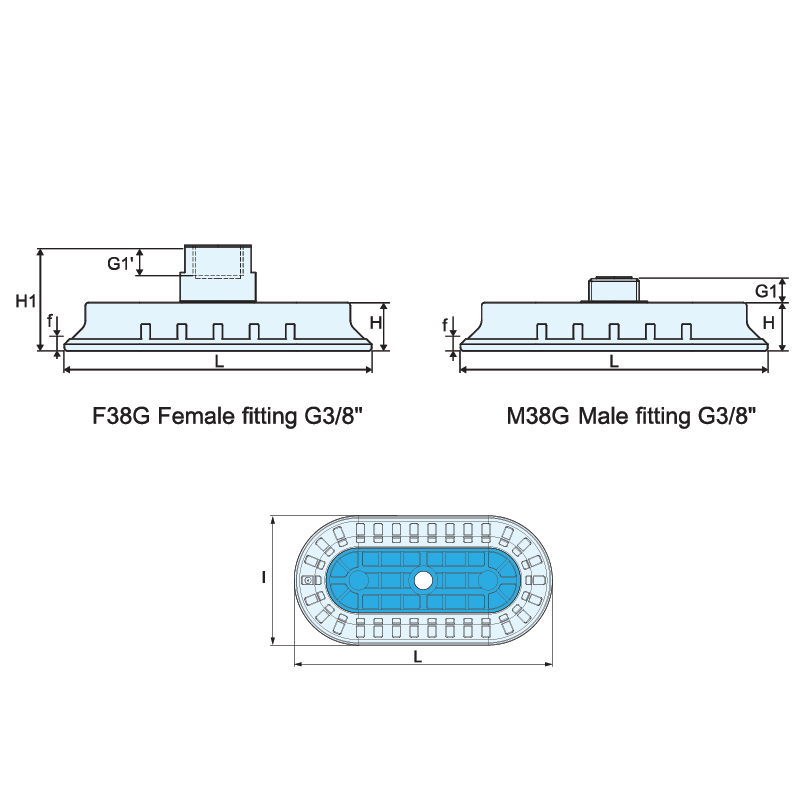

| Model | I × L at rest |
I × L gripping |
Volume
[cm3] |
Horizontal
[N] |
Vertical
[N] |
Rmin | Rmin | Ø bore | H1 | H | G1 | G1' | f | Weight [g] | PN | ||
| F38G | M38G | F38G | M38G | ||||||||||||||
| VOBC 3065 | 31x65 | 32.3x67 | 9.98 | 60 | 60 | 25 | 30 | 6 | 39 | 20 | 8 | 10 | 7 | 31 | 25 | 1.Y08462 | 1.Y08492 |
| VOBC 4080 | 40x80 | 41.5x82 | 19.44 | 110 | 120 | 38 | 37 | 6 | 41 | 22 | 8 | 10 | 9 | 37 | 31 | 1.Y08463 | 1.Y08493 |
| VOBC 55110 | 55x110 | 57x112.5 | 49.25 | 170 | 190 | 58 | 57 | 6 | 48 | 29 | 8 | 10 | 13 | 68 | 62 | 1.Y08464 | 1.Y08494 |
| VOBC 70140 | 70x140 | 72x143 | 93.57 | 300 | 300 | 72 | 68 | 6 | 49 | 30 | 8 | 10 | 16 | 103 | 97 | 1.Y08465 | 1.Y08495 |
