Choose a variant

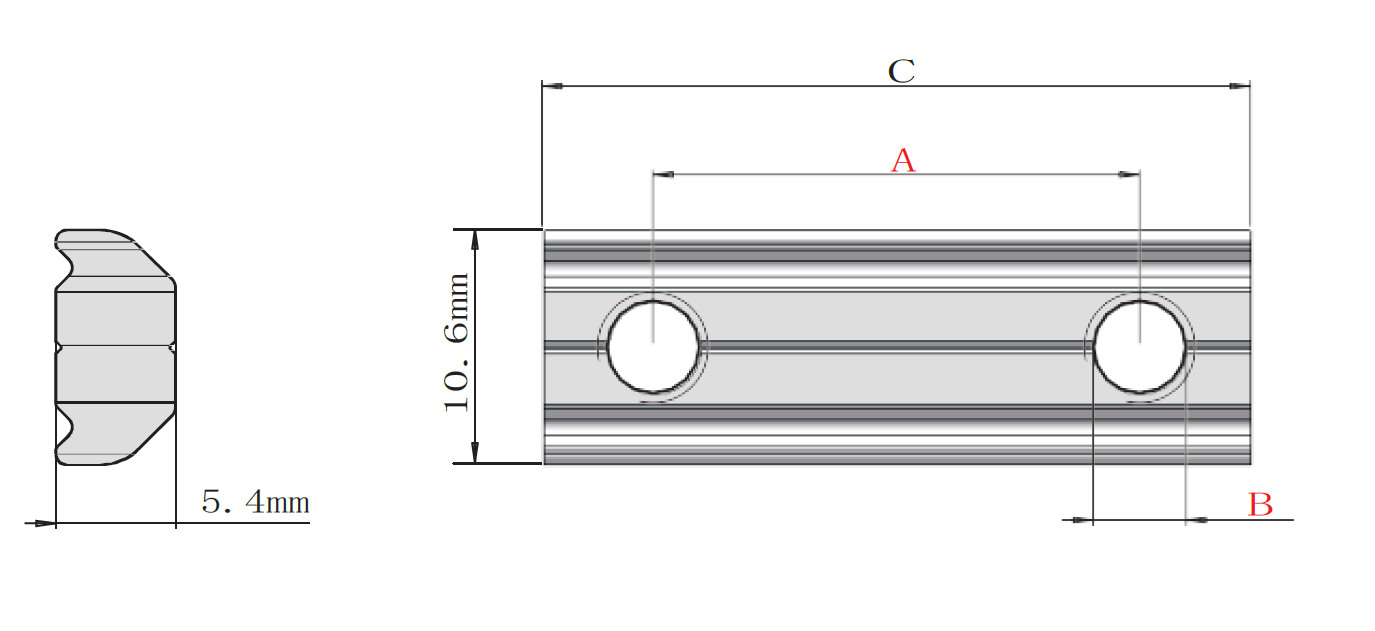

| PN | Model | A [mm] | B | C [mm] | Weight |
| 7.Y00653 | PTN-M4P8 | 8 | M4 | 16 | 5 g |
| 7.Y00654 | PTN-M5P10 | 10 | M5 | 20 | 7 g |
| 7.Y00655 | PTN-M5P15 | 15 | M5 | 25 | 9 g |
| 7.Y00656 | PTN-M5P17 | 17 | M5 | 25 | 9 g |
| 7.Y00657 | PTN-M5P22 | 22 | M5 | 32 | 11 g |
| 7.Y00658 | PTN-M5P25 | 25 | M5 | 35 | 13 g |
| 7.Y00659 | PTN-M5P28 | 28 | M5 | 38 | 14 g |
| 7.Y00660 | PTN-M5P30 | 30 | M5 | 40 | 15 g |
| 7.Y00661 | PTN-M5P35 | 35 | M5 | 45 | 16 g |
| 7.Y00662 | PTN-M5P40 | 40 | M5 | 50 | 18 g |
| 7.Y00663 | PTN-M5P50 | 50 | M5 | 60 | 22 g |
| 7.Y00664 | PTN-M5P60 | 60 | M5 | 70 | 26 g |
| 7.Y00665 | PTN-M5P90 | 90 | M5 | 100 | 38 g |
